Commercial door
One door. One statement.
10-Year transferable Warranty
Universal energy-efficient glass
5-Layer zero-damage packaging
70% Faster sorting withtraceable taga
Features & benefits
Jamb: 4 5/16"
Bottom rail: 10 7/16" (Options: 6 9/16" / 4 1/2" / 3 3/4")
Panel thickness: 1 3/4"
ADA Sill: 4 5/16" Non-Thermal
Opening Methods: Single Door / Double Swing Door
Single Door: (2'-1 5/8" ≤ W ≤ 3'-7 1/4") (5'-10 7/8" ≤ H ≤ 8')
Double Swing Door: (4'-3 1/8" ≤ W ≤ 7'-6 1/2") (5'-10 7/8" ≤ H ≤ 10')

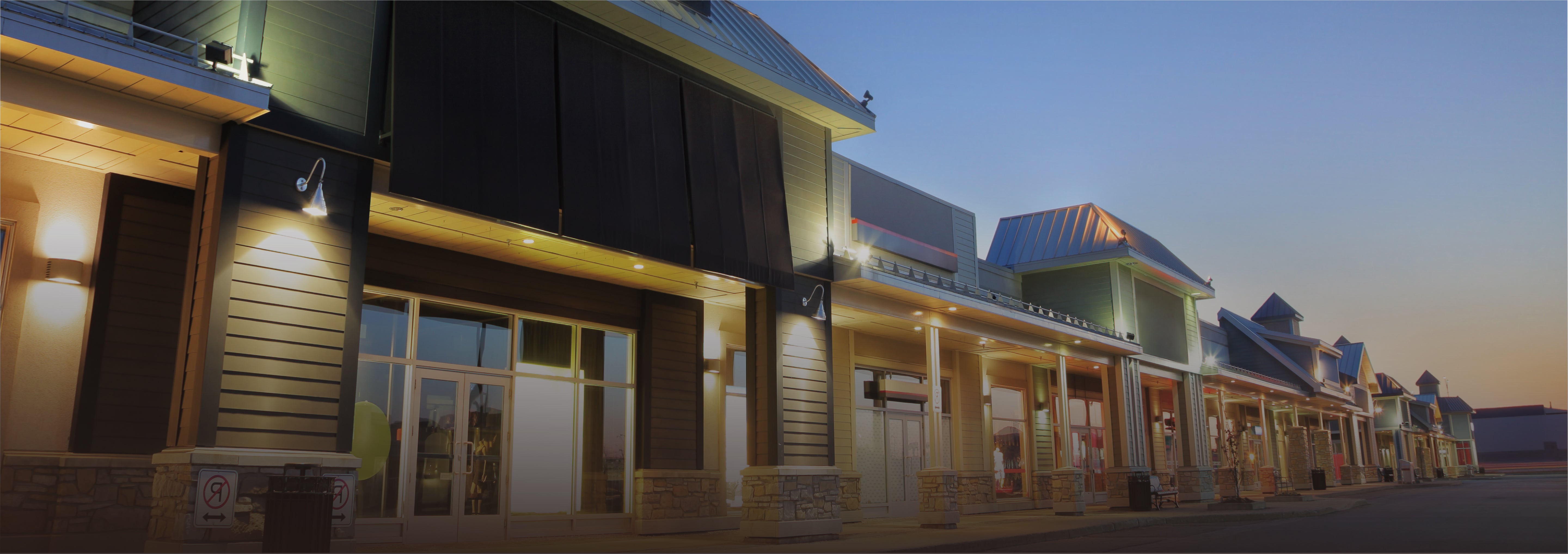

We know how important your doors are to your storefront. They are the customers' first impression of your business as they enter and a lasting impression as they leave while helping you provide your highest quality products and services. Giving your customers the best products and services is your business. Getting them through your doors smoothly and reliably is ours.
Commercial door

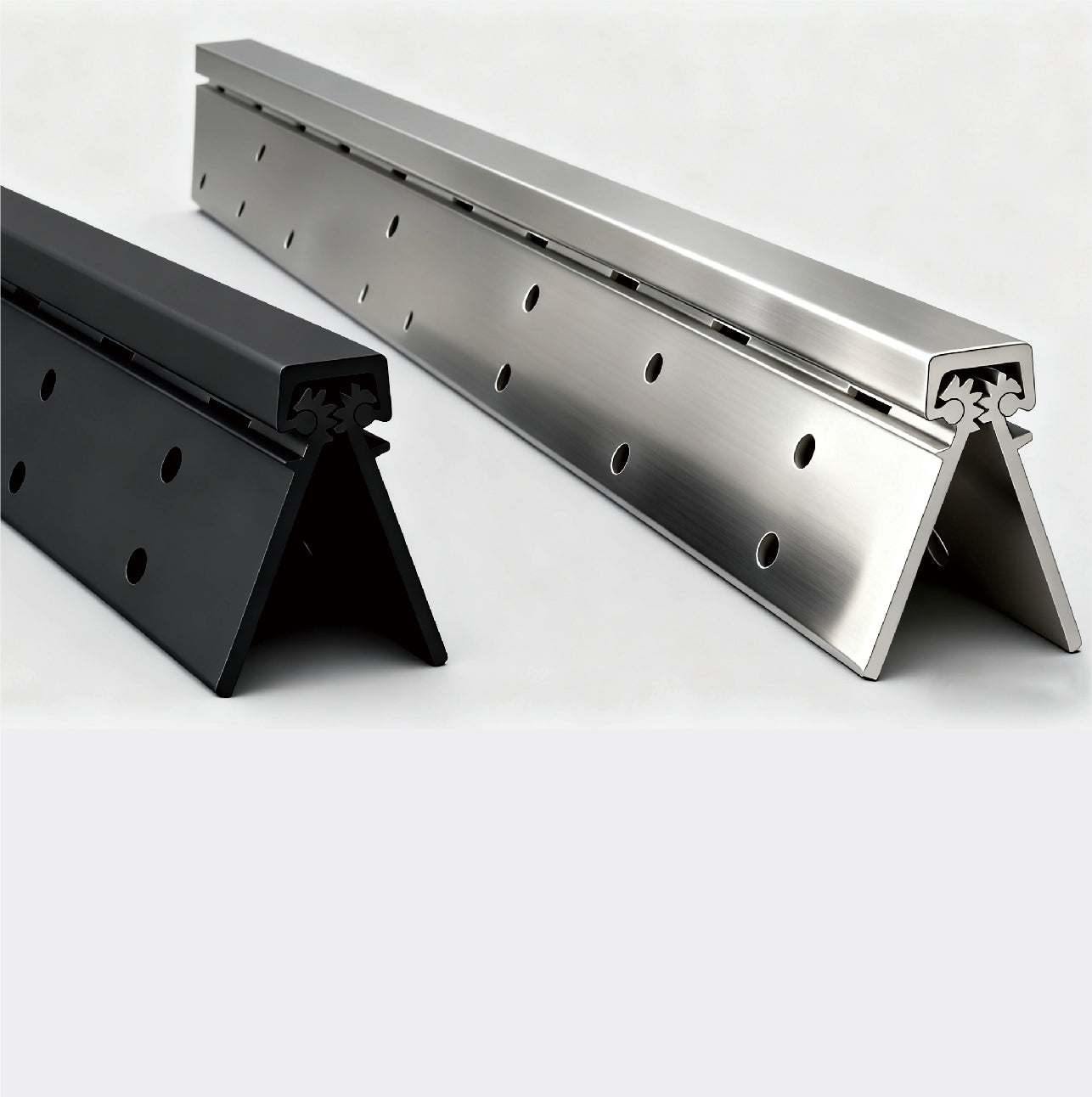

One-piece Continuous Hinge
A continuous hinge is a single, full-length metal pivot, nearly the height of the door leaf itself. It provides uninterrupted, linear support from top to bottom, elevating the door's performance, security, and aesthetics to a new level.

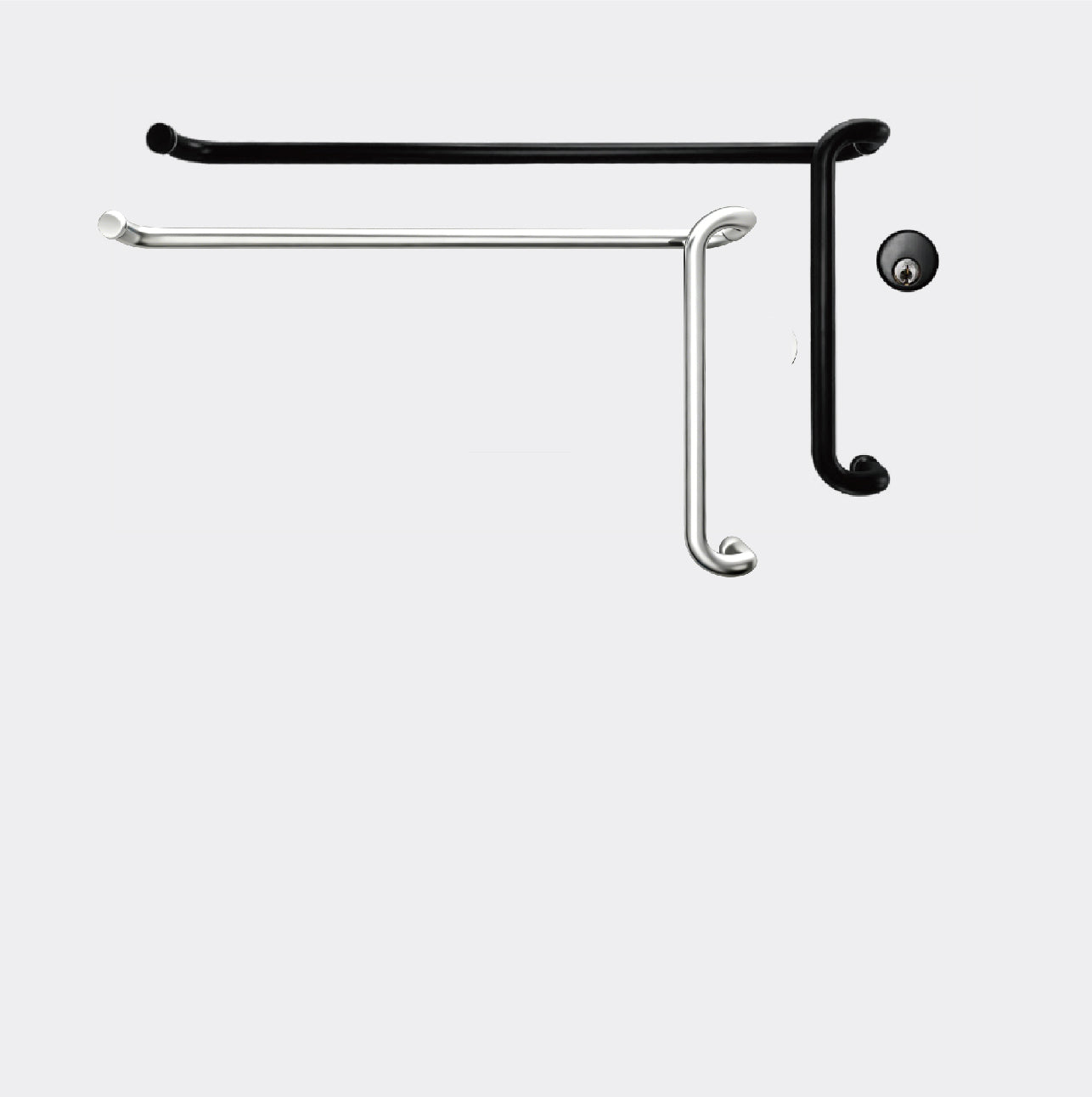

304 S.S Door Pulls
Engineered for durability and daily high-traffic use, our 304 stainless steel door pulls offer exceptional corrosion resistance and strength. The satin finish resists fingerprints and is easy to maintain.

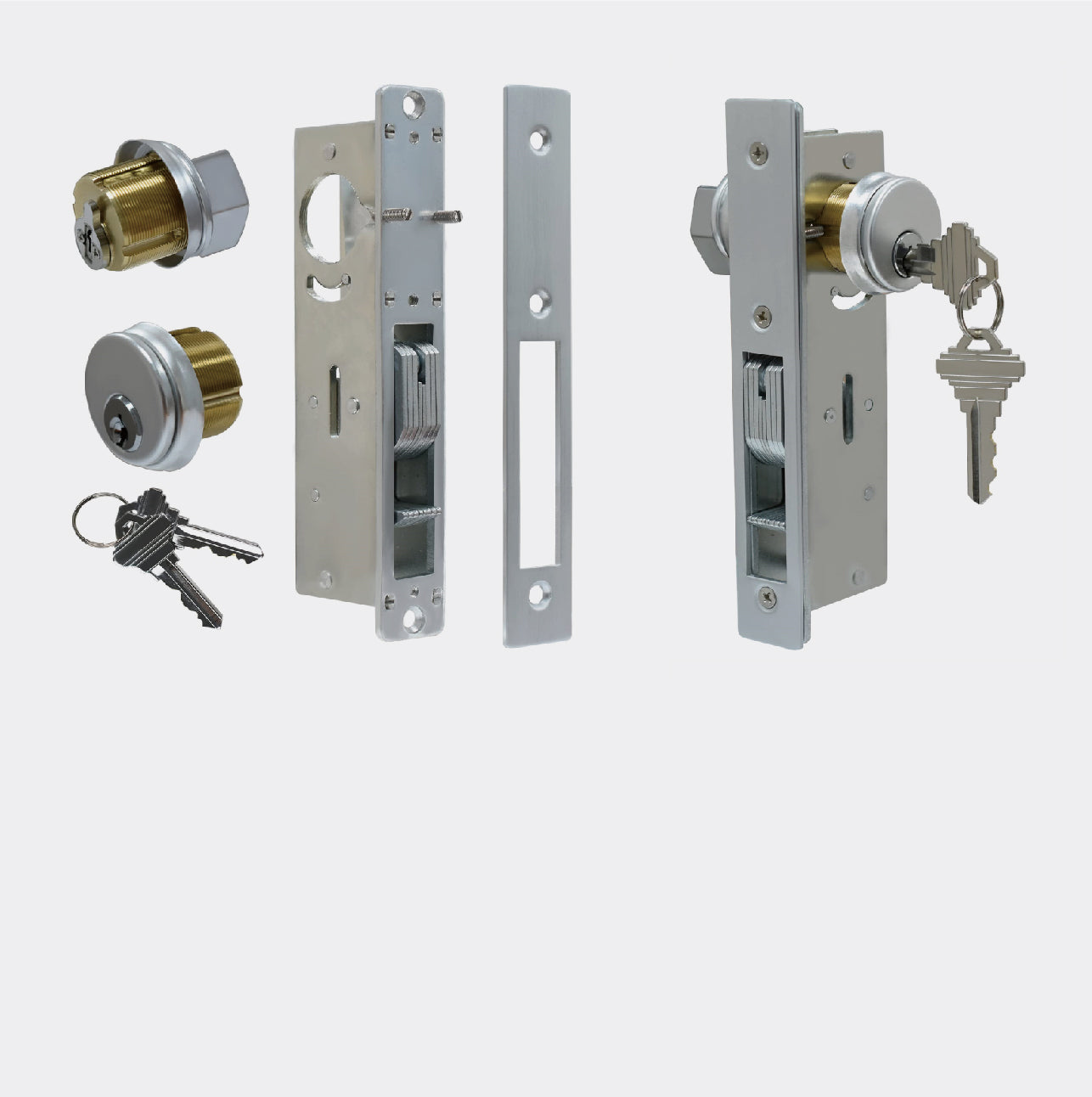

Lockset
The lock mechanism is the hidden mechanical heart of a door — an unseen guardian that integrates security, durability, and smooth operation. Investing in a quality lock is the most critical insurance for your entire door system.

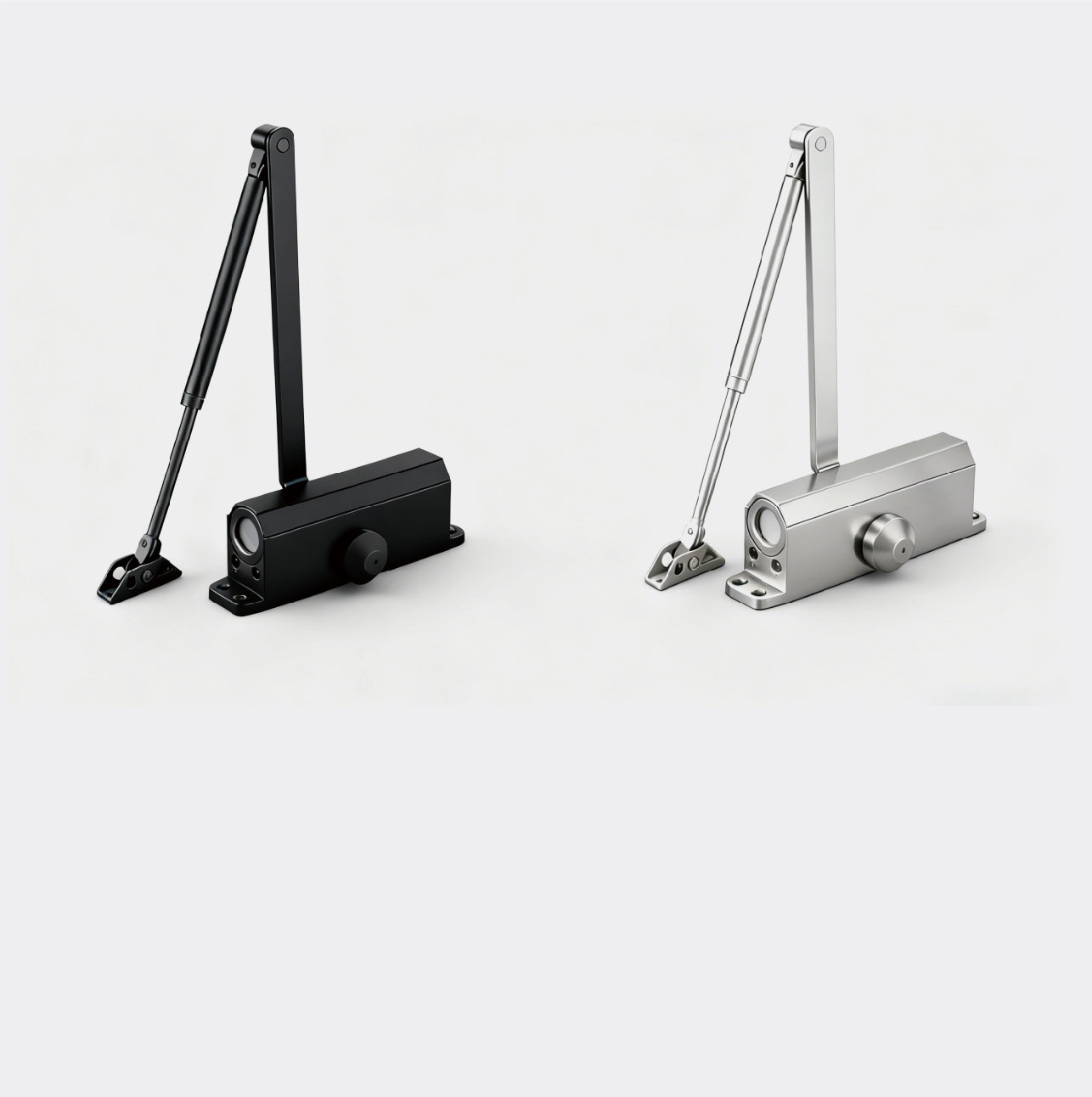

Door Closer
A door closer acts as the door’s “smart muscle” and “silent guardian,” transforming an ordinary door into a secure, energy-efficient, and user‑friendly system. It is an indispensable component in commercial and public architecture.

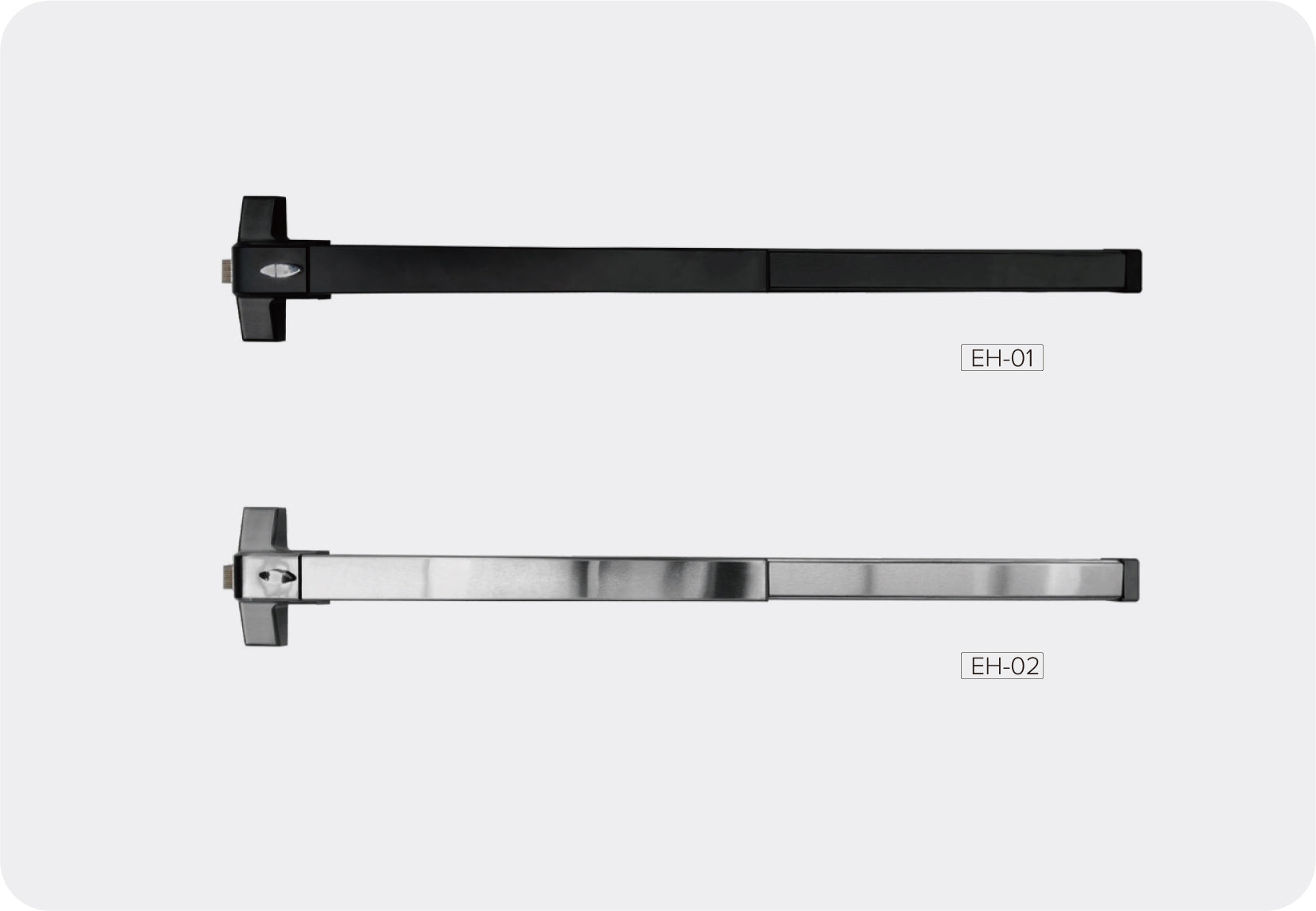

Panic Bar
A rim panic device is surface-mounted on the door, with the latch projecting from the panic device rather than the door edge. This is the simplest configuration of panic hardware, and the easiest to maintain. Rim panics can be used on single doors, or on pairs of doors in conjunction with a removable mullion.
Push to Exit Button
One of the advantages of the push to exit buttons is their versatility. Exit buttons are suitable for use in electronic locking solutions, which need to provide a free exit option on the door. In some cases, the push to exit button can be used when the access control panel fails to unlock the door.

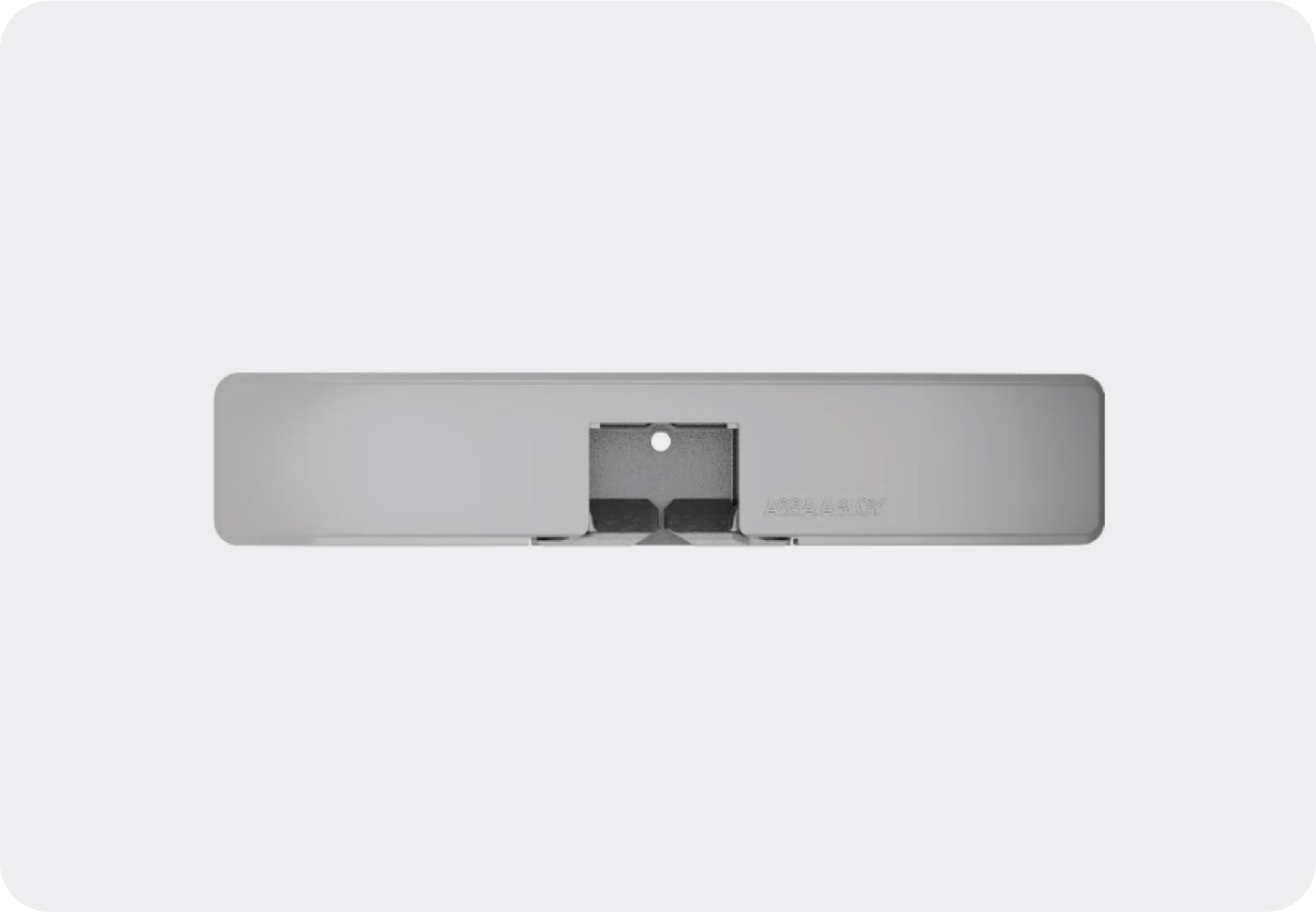

Electric Strike
Electric Strike is a windstorm resistant, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw Pullman latchbolt. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install.

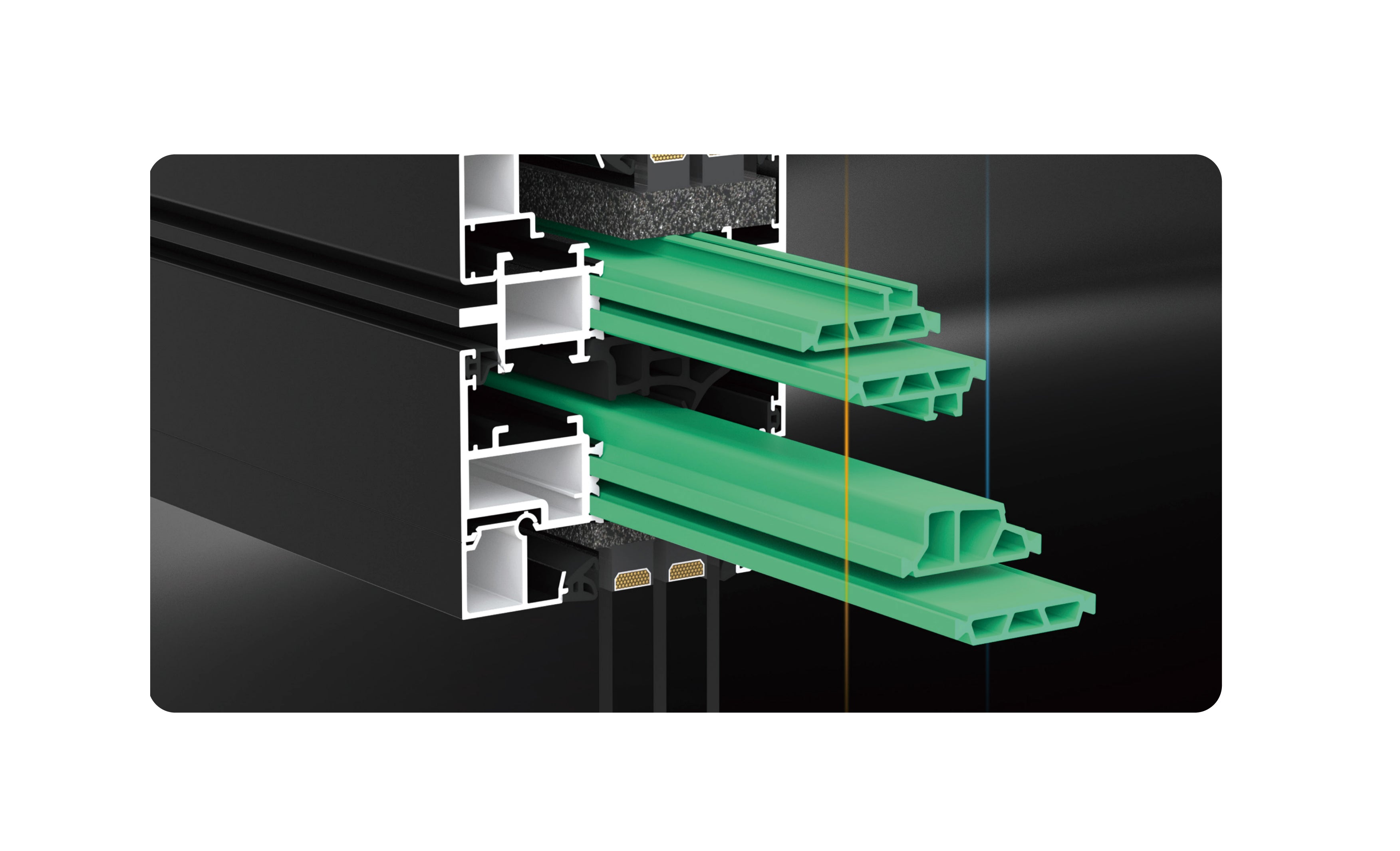

Thermal break aluminum system
Thermal break aluminum incorporates an insulation strip (nylon PA66 ) into the aluminum profile, separating the indoor and outdoor aluminum sections. This effectively blocks heat transfer pathways, creating a "thermal break," thereby significantly enhancing the thermal insulation performance of windows and doors.
Strength
Outstanding energy efficiency reduced energy consumption
The thermal break effectively blocks heat transfer, providing insulation in summer and warmth in winter, which can lower air conditioning and heating energy usage by approximately 30%-50%.
Excellent sound insulation performance
multi-layer sealing design, when combined with double-glazed or laminated glass, can reduce noise by 30-40 decibels, making it suitable for noisy environments such as streetside locations or areas near airports.

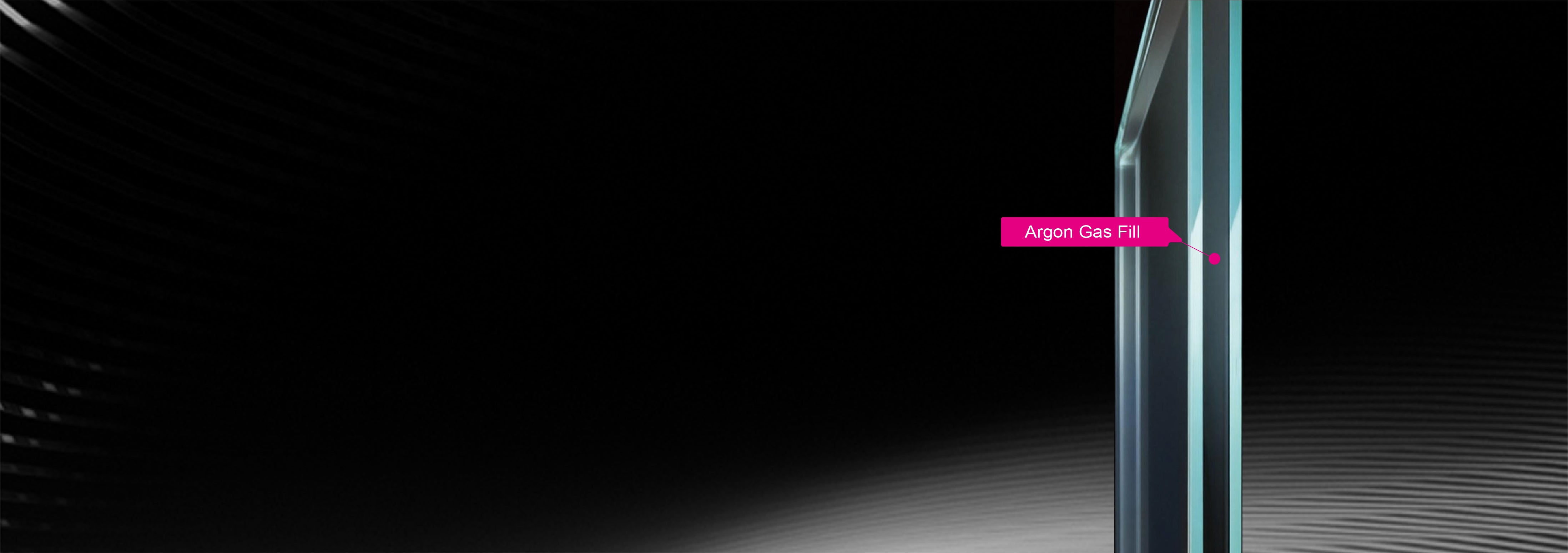

Glass performance characteristics
Tempered
Tempered glass is heat-treated to be 4–5 times stronger than regular glass and shatters into small, safe fragments upon breakage, making it ideal for safety-critical applications like doors, showers, and large windows.
Laminated
Laminated glass layers glass with a PVB interlayer to hold shards together upon impact, while also providing sound insulation and UV blocking—ideal for safety-conscious, noise-sensitive, and UV-exposed applications like storefronts and skylights.

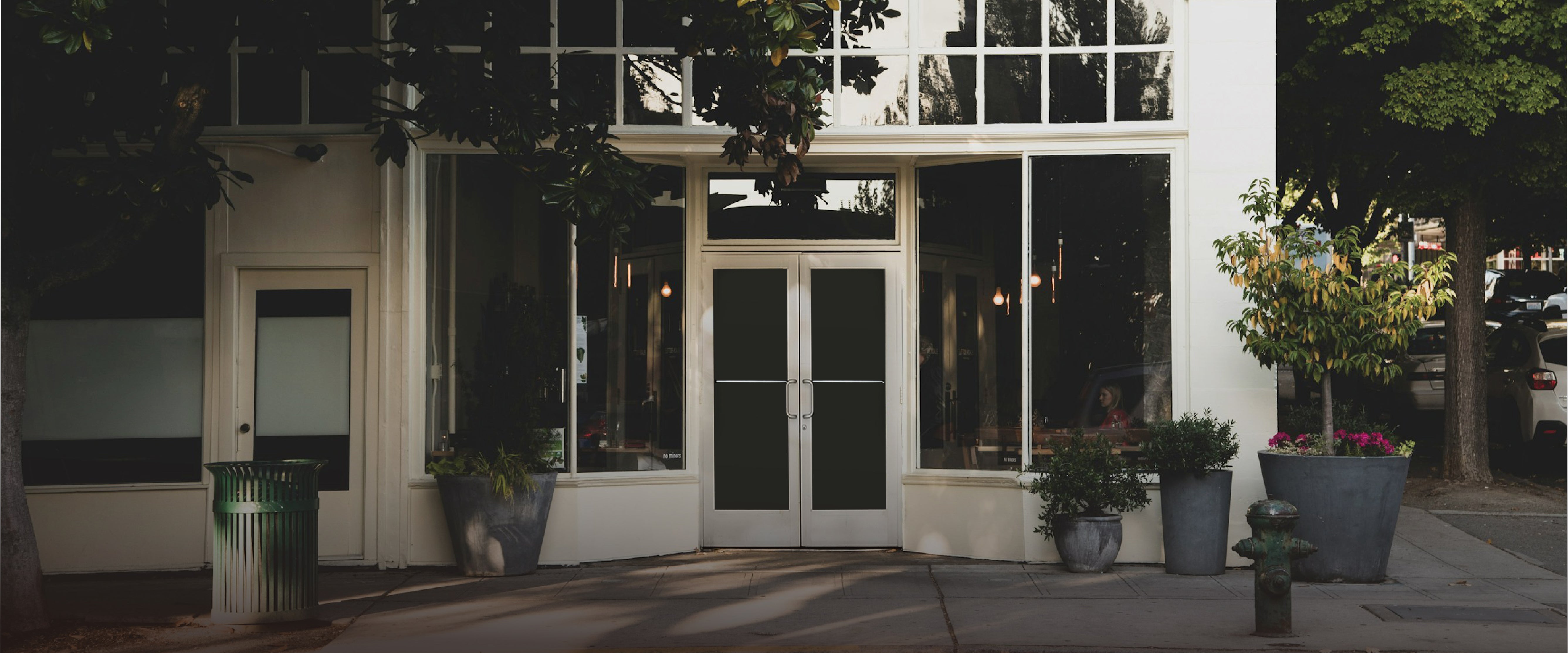

Project showcase
Every project represents the realization of a vision, the fulfillment of trust, and a vivid story of how space is redefined. Here, you witness not only the application of products but also the complete journey of how Luvindow collaborates with architects, developers, and owners to transform complex challenges into outstanding achievements.
