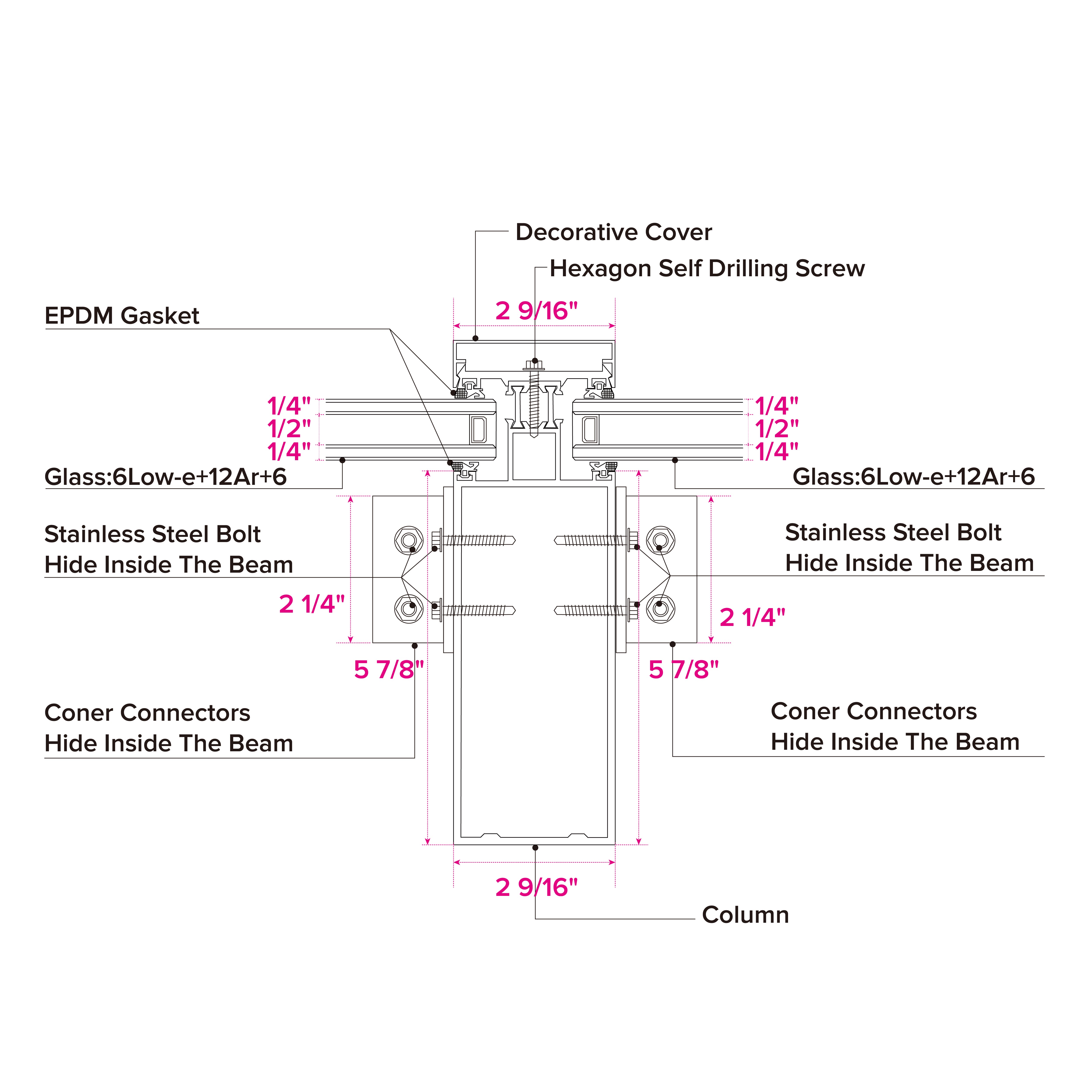

Window wall -110s
Maximum transparency.
10-Year transferable Warranty
Universal energy-efficient glass
5-Layer zero-damage packaging
70% Faster sorting withtraceable taga

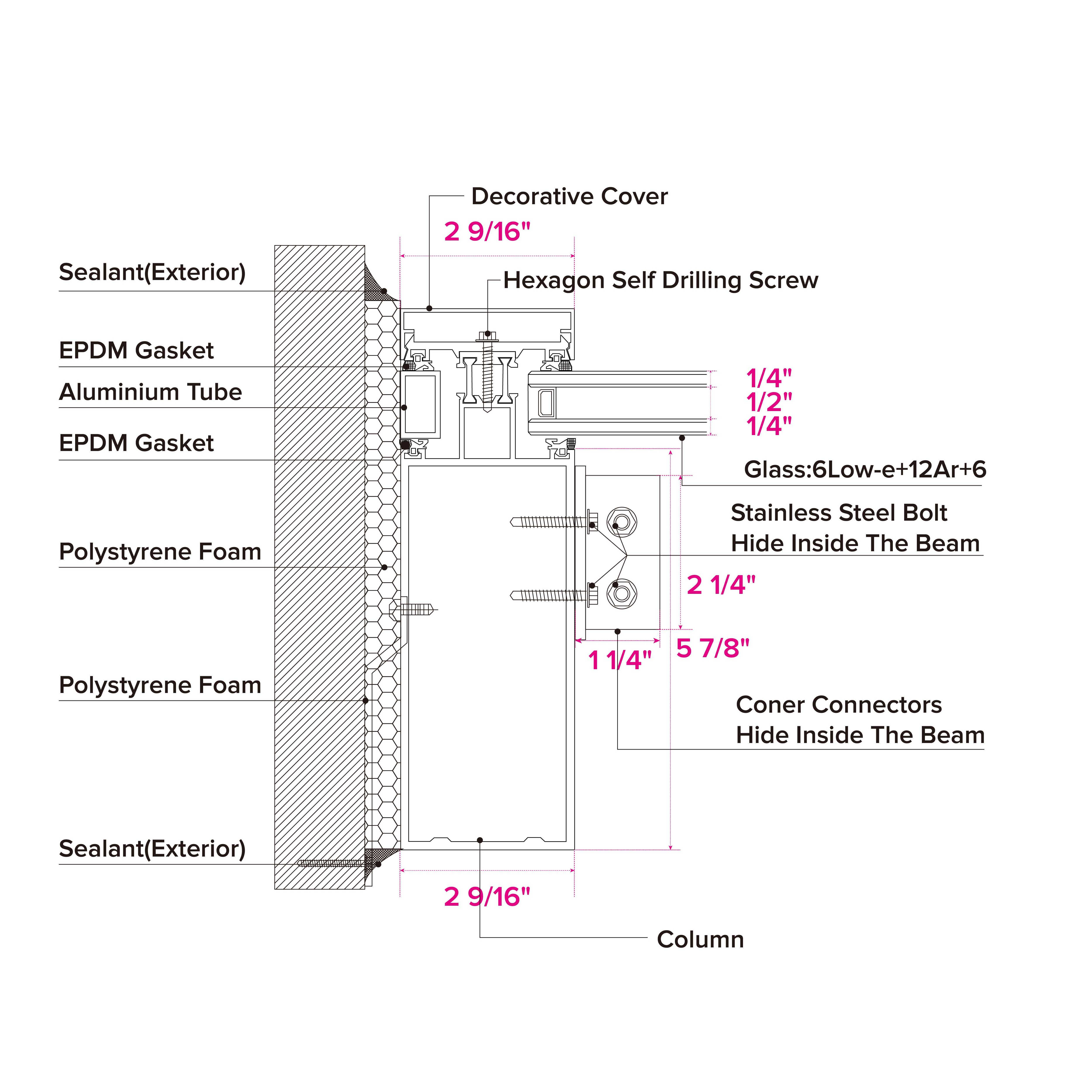

Window wall system
contact usIn commercial architecture, the window wall system is more than an opening—it is a critical communication interface between your brand and the world. Our window wall system provides the ultimate, uninterrupted canvas for display and design, transforming your facade into a powerful statement of clarity, presence, and professionalism.
FBC certified
Hurricane proof window
Luvindow hurricane proof window is being tested in accordance to Florida Building Code, 8th Edition (2023), the latest version building code. All units are tested by codes TAS 201, 202, 203, and also large missile impact standards according to Zone 4, Missile Level D at 50 ft/sec.

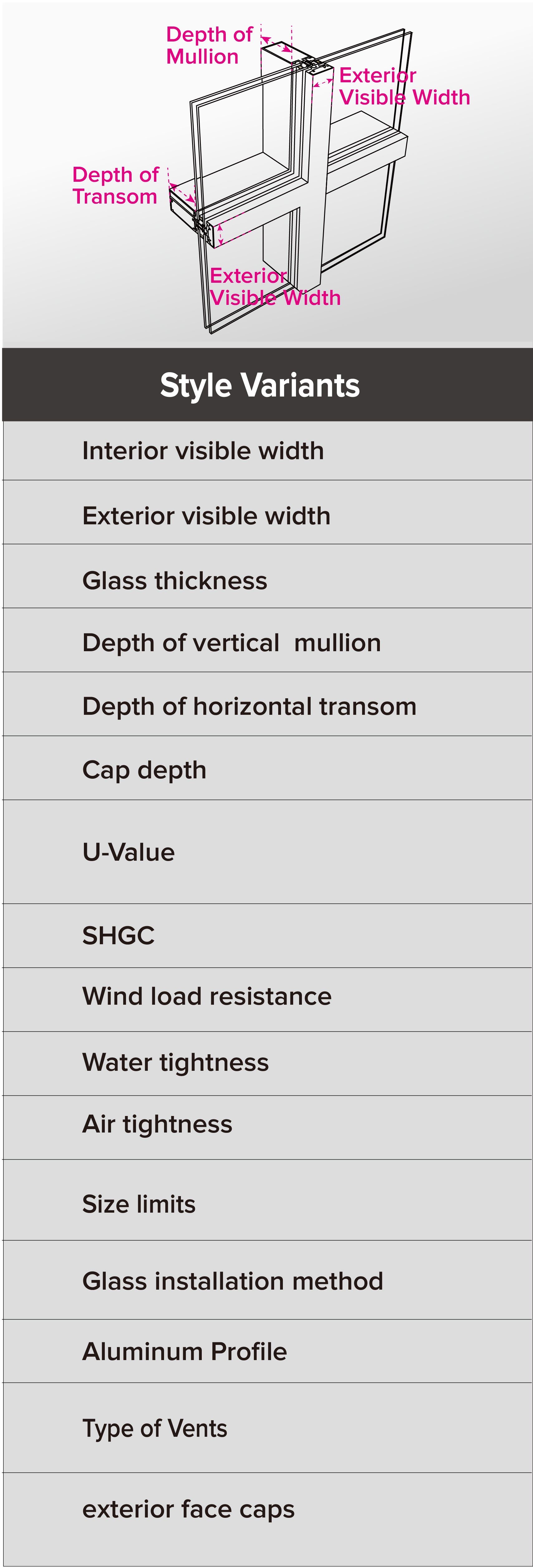

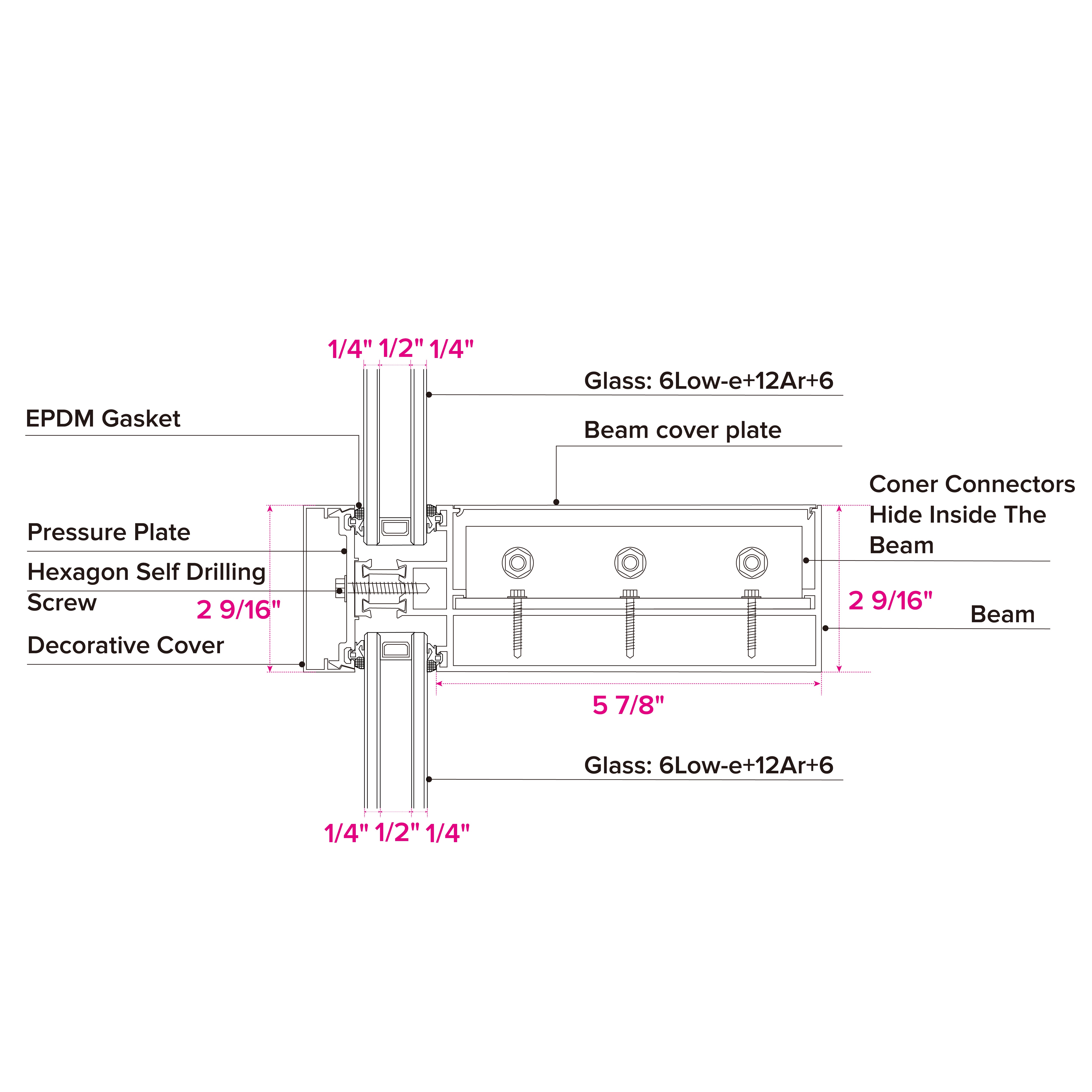

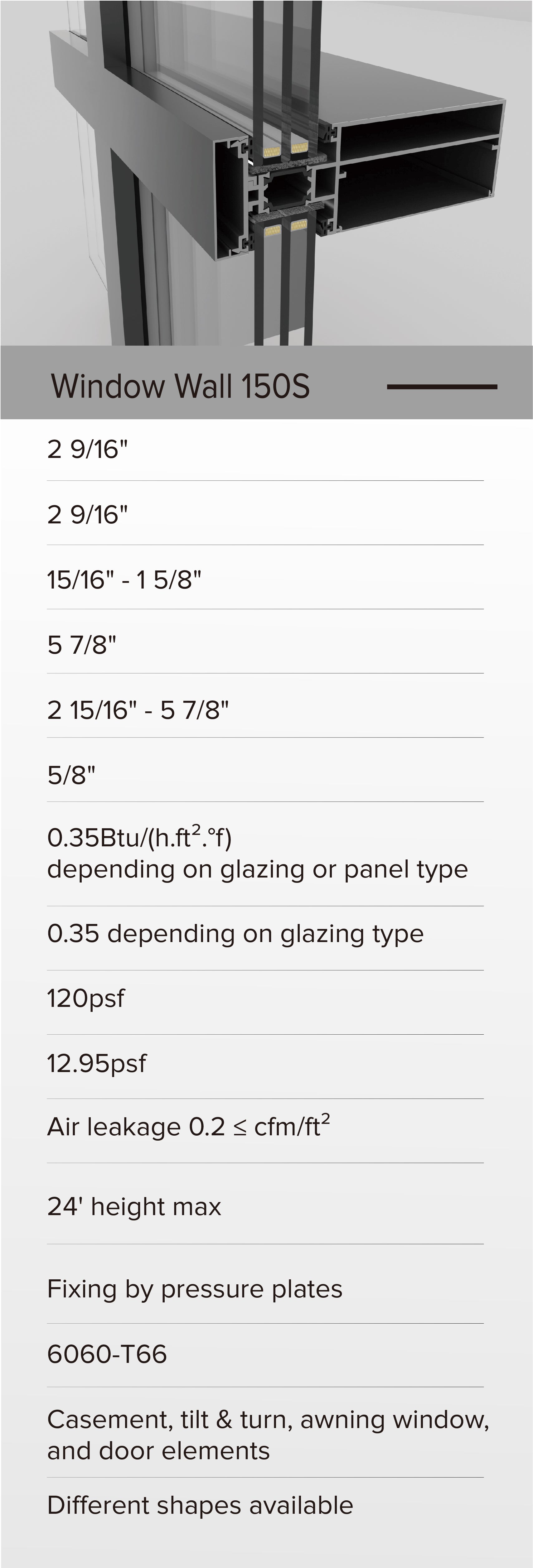

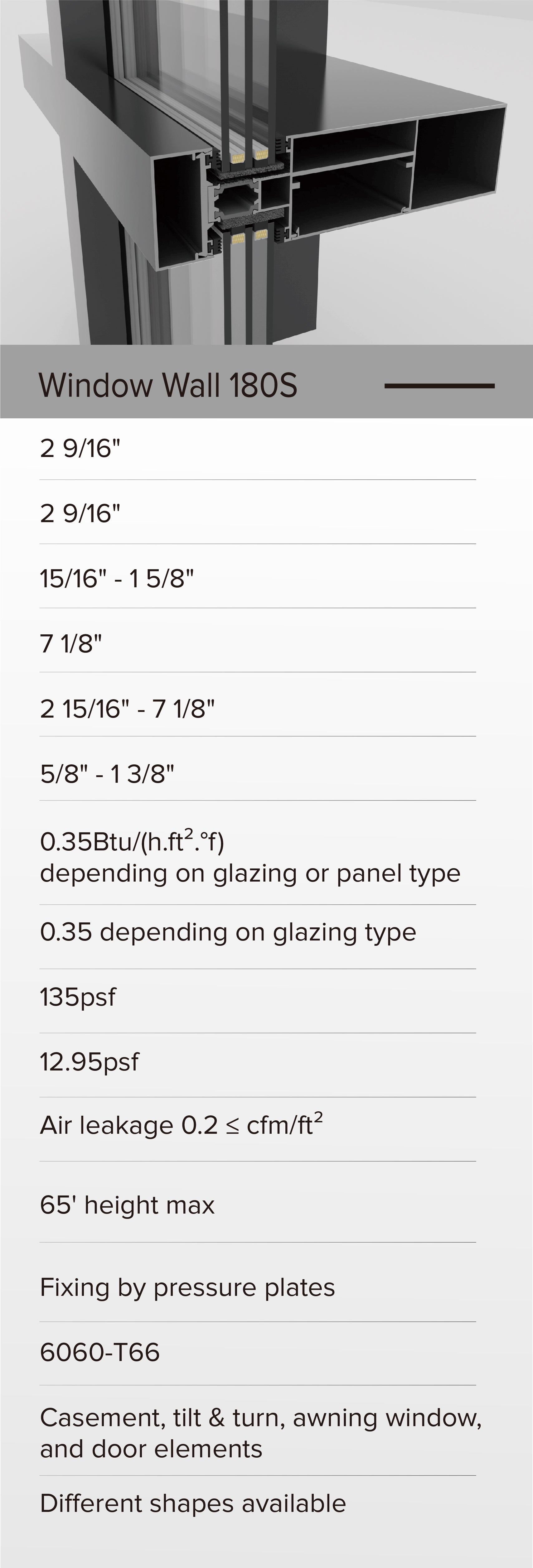

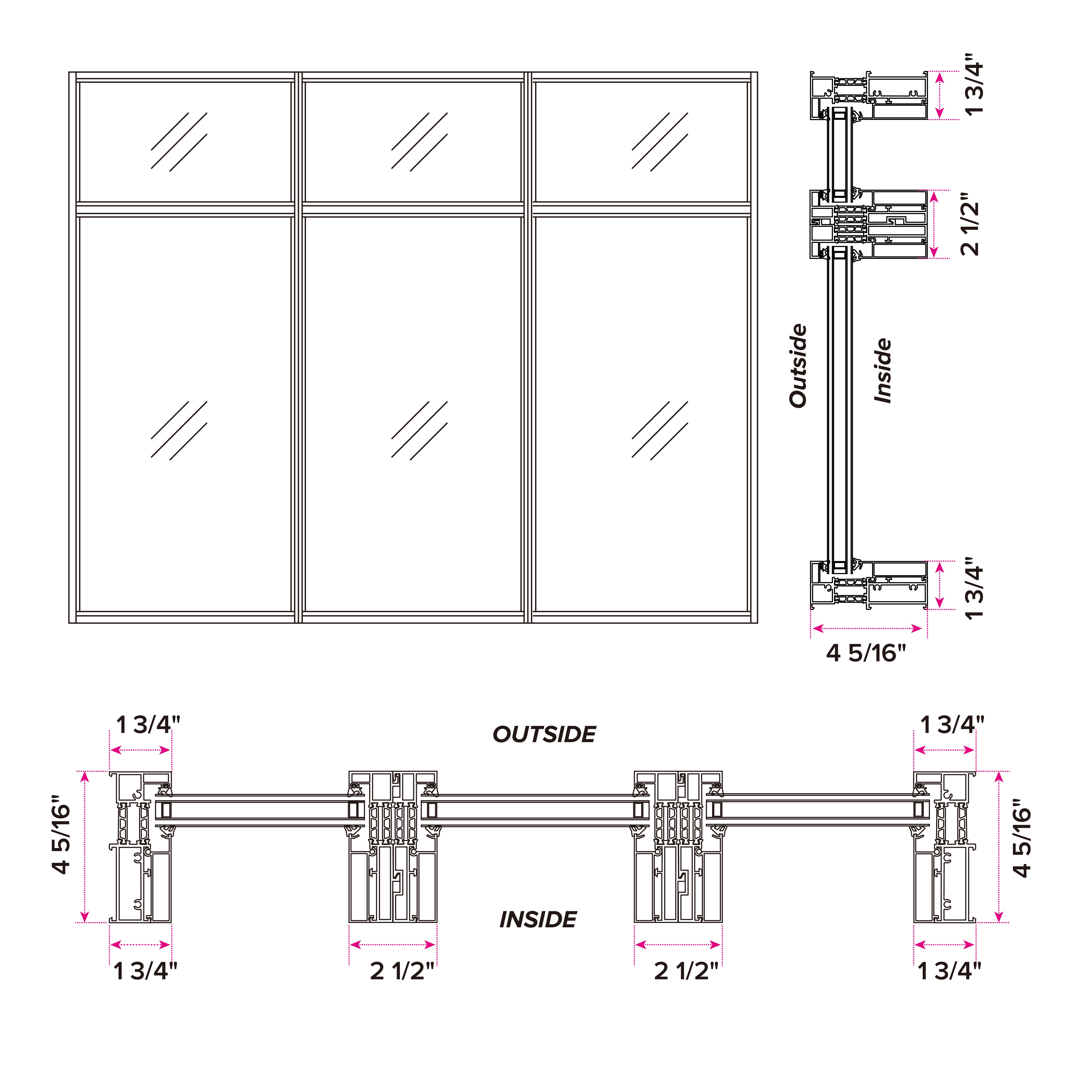

Window wall-110s

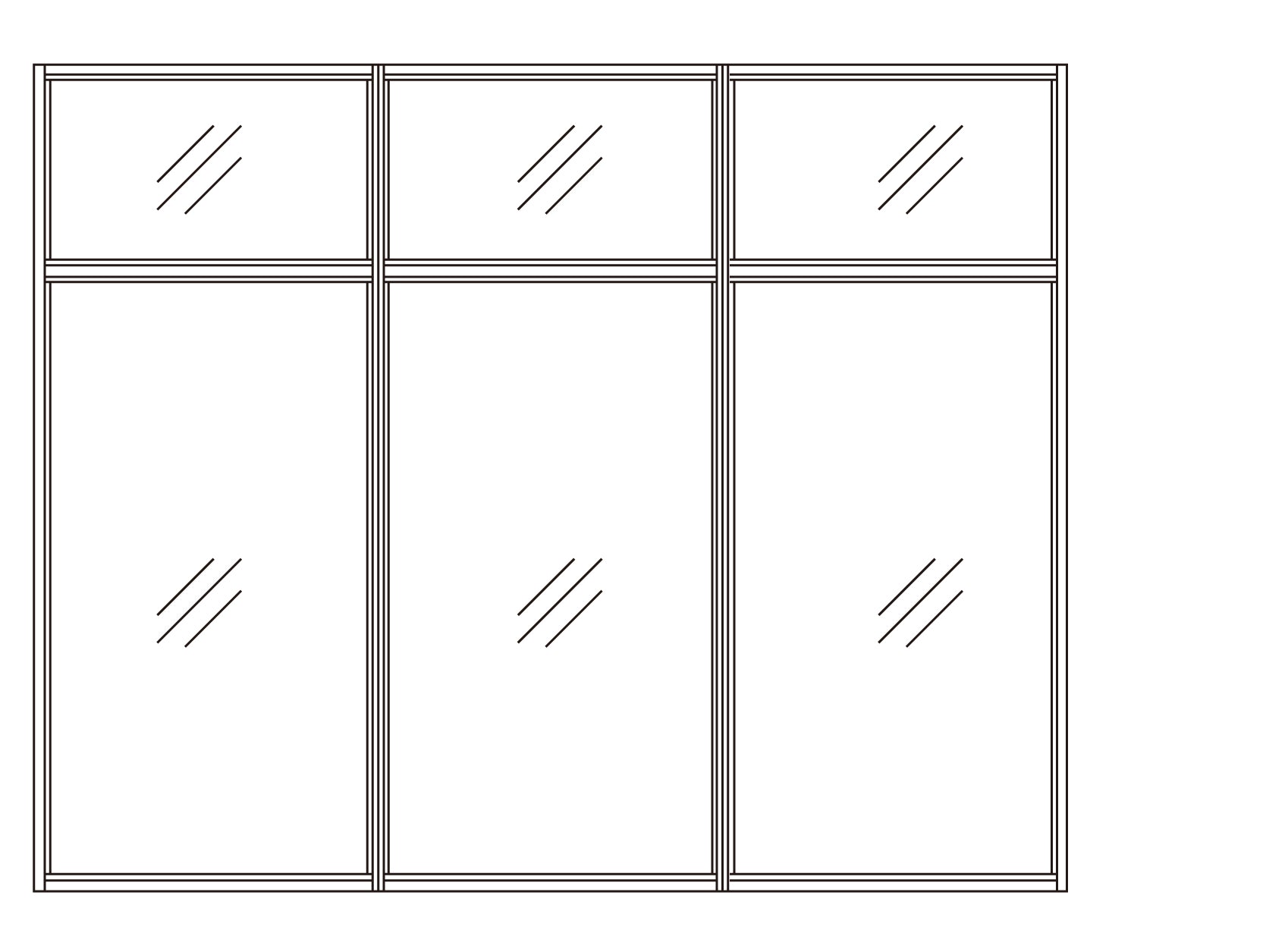

Types & variations
Standard:

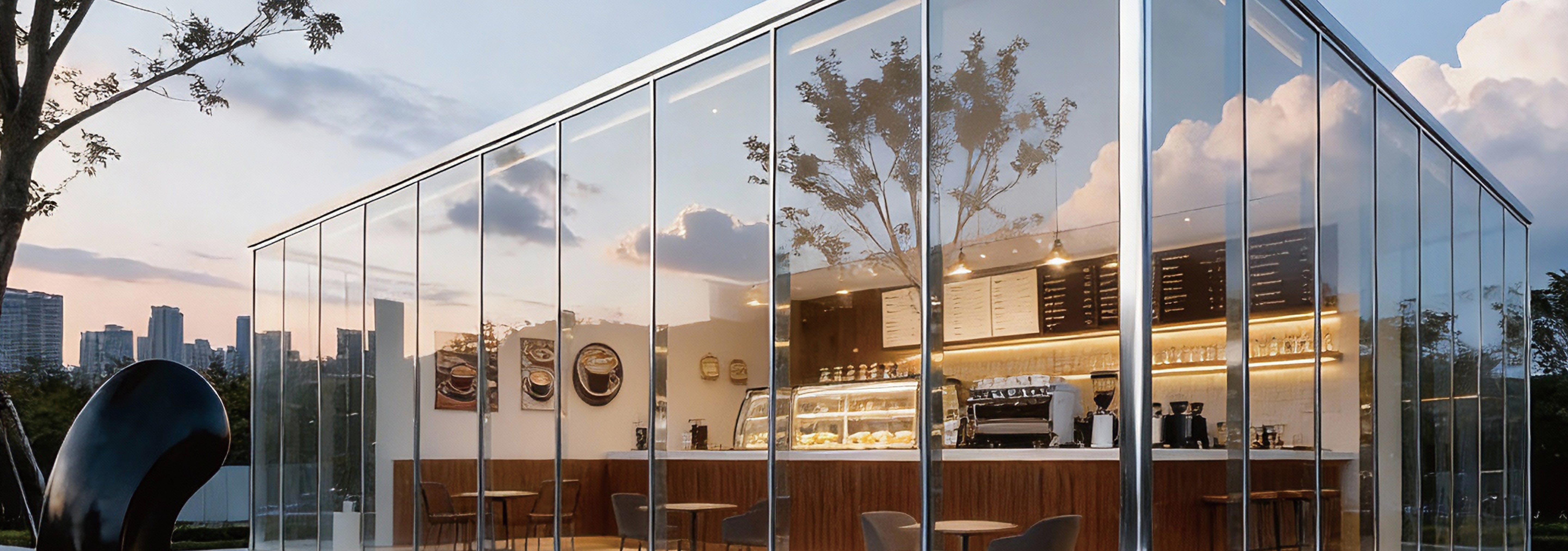

Common for ground-floor retail, typically 10 feet high or less.
Maximum view:
Use this section to explain a set of product features, to link to a series of pages, or to answer common questions about your products.

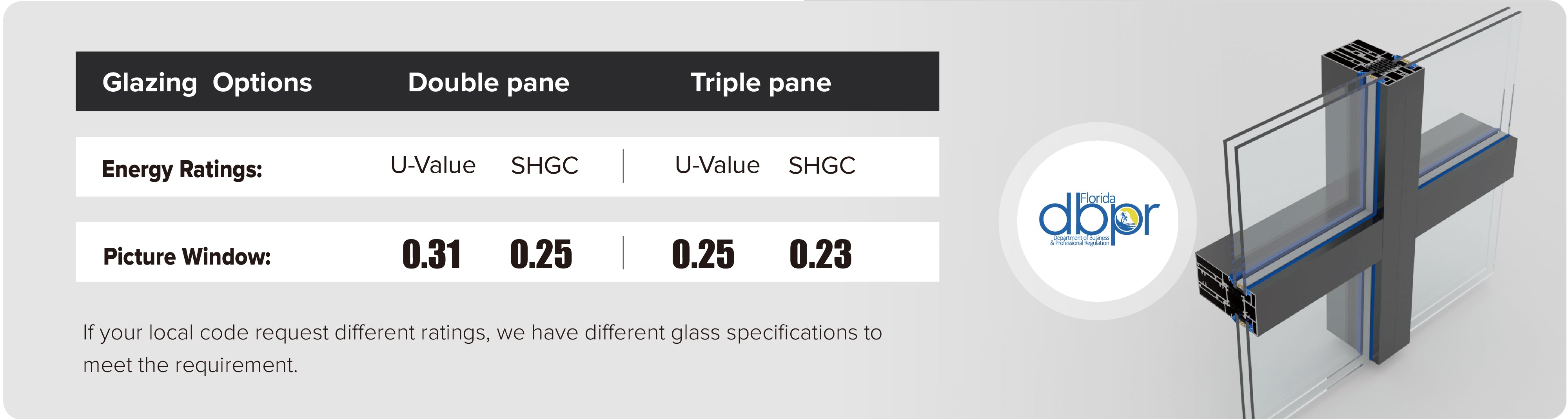

Glass Types:
Can range from basic double-pane thermal control insulated IGU to three-pane for better energy efficiency, or insulating laminated IGU for better impact resistance and sound dampening.
Key Characteristics
Visibility:
Offers clear, unobstructed views into the store, crucial for retail appeal andbranding.
Framing:
Uses aluminum frames with large glass panels, often combined with glassdoors for entry.
Non-Load Bearing:
Relies on the building structure for support, unlike curtain wallsmaking it ideal for ground floors.
Durability:
Engineered for high traffic, weather resistance, and commercial codesusing single or double-pane glass.
Function:
Creates curb appeal, showcases merchandise, and enhances natural lightacting as a key marketing tool.

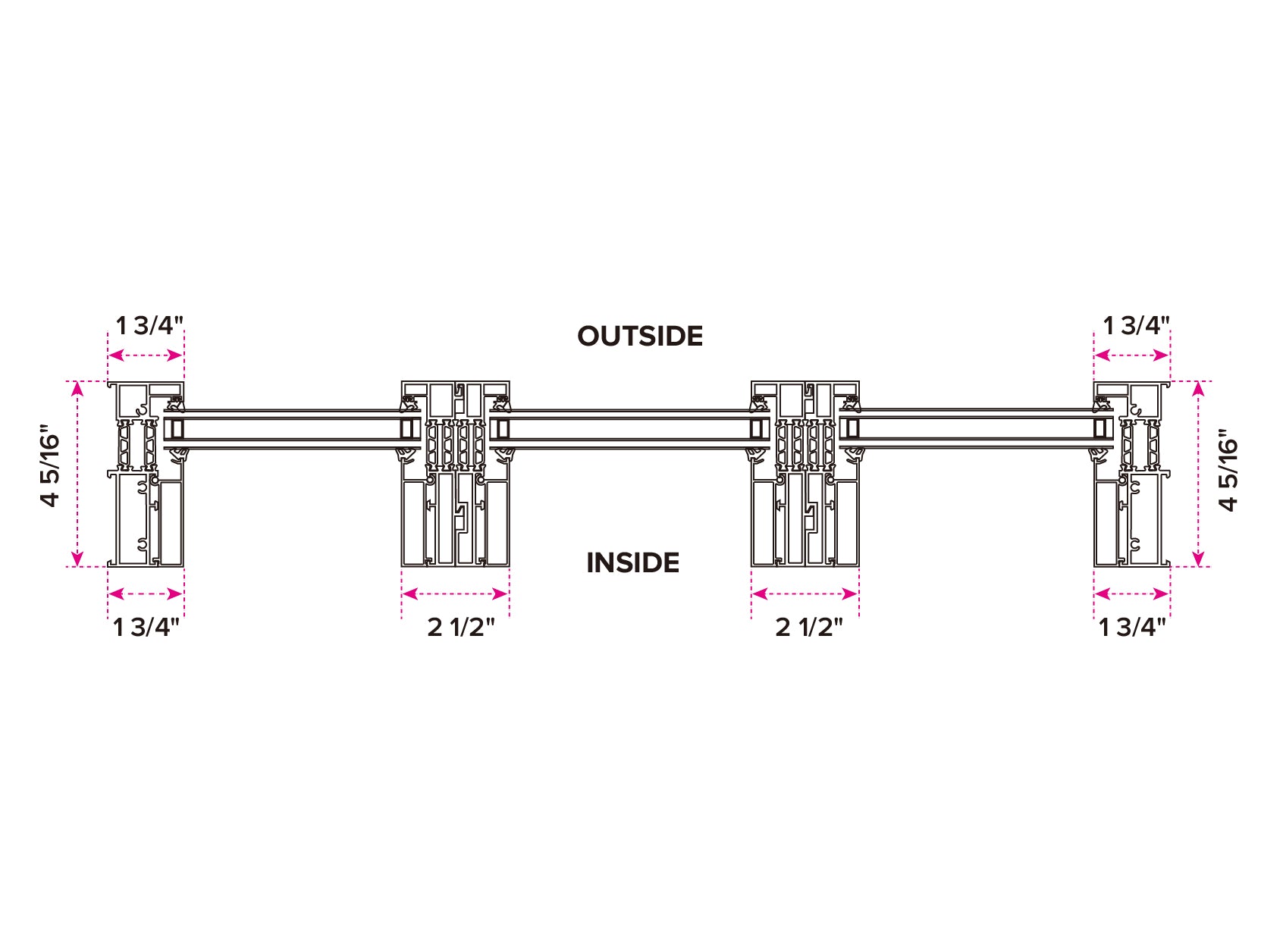

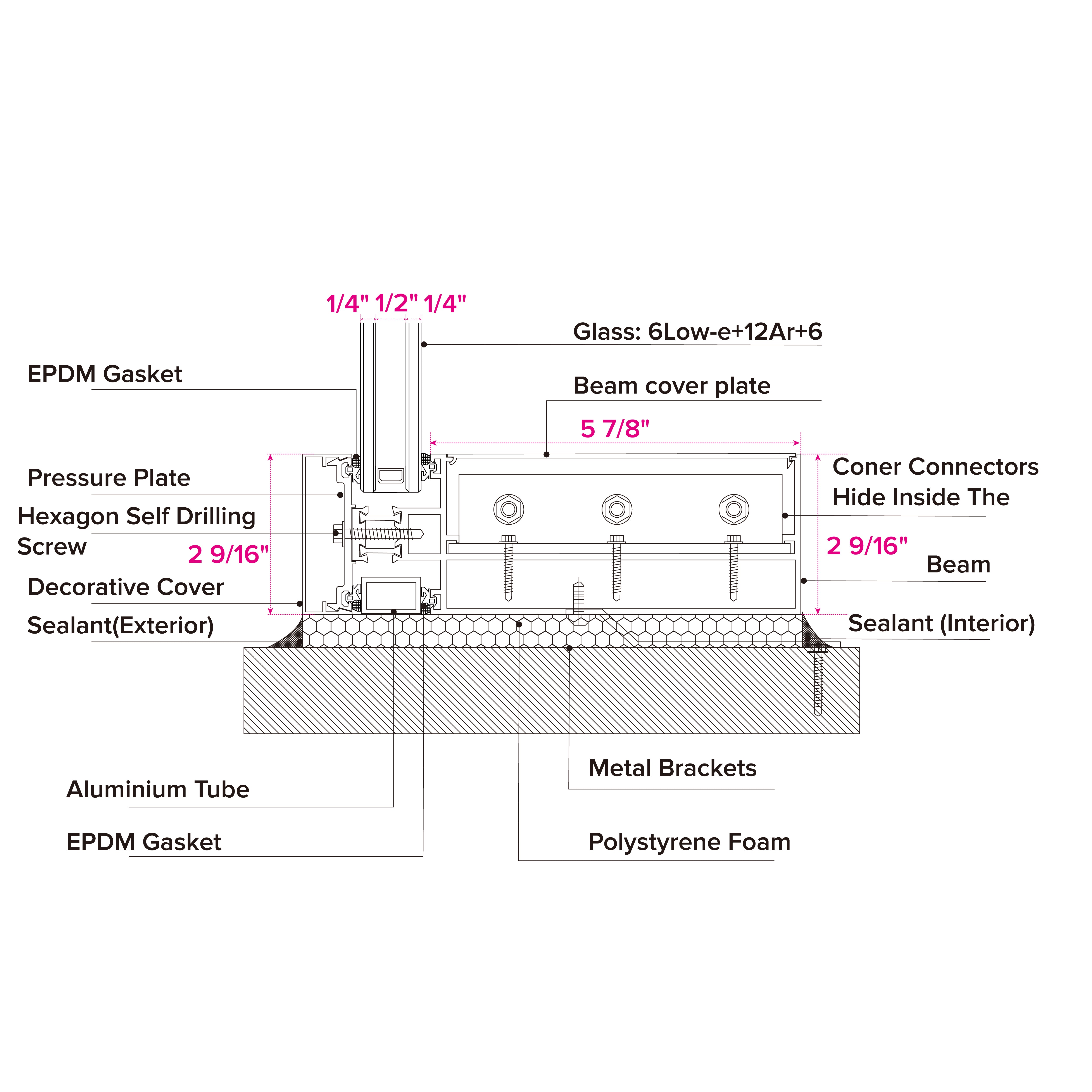

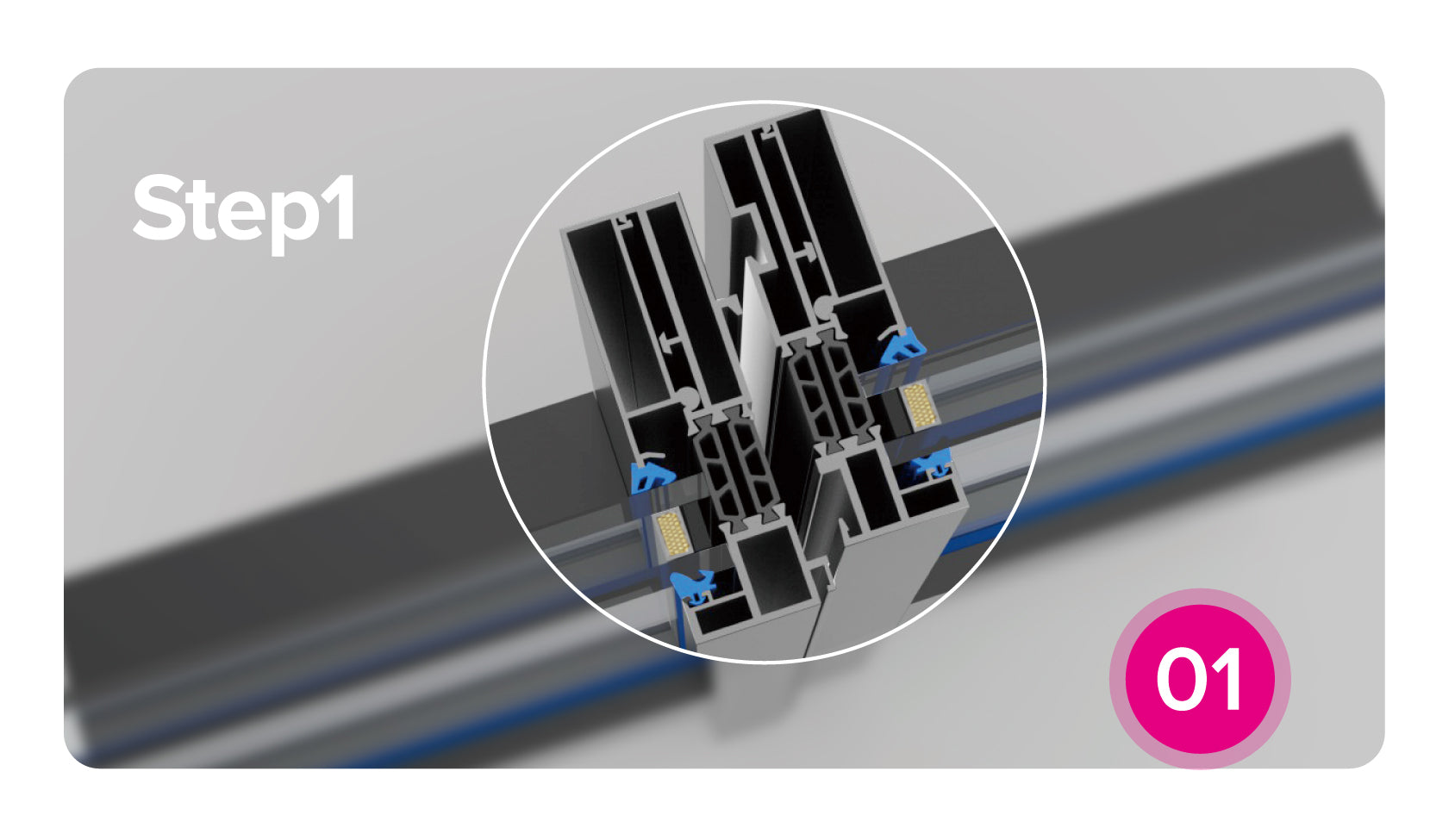

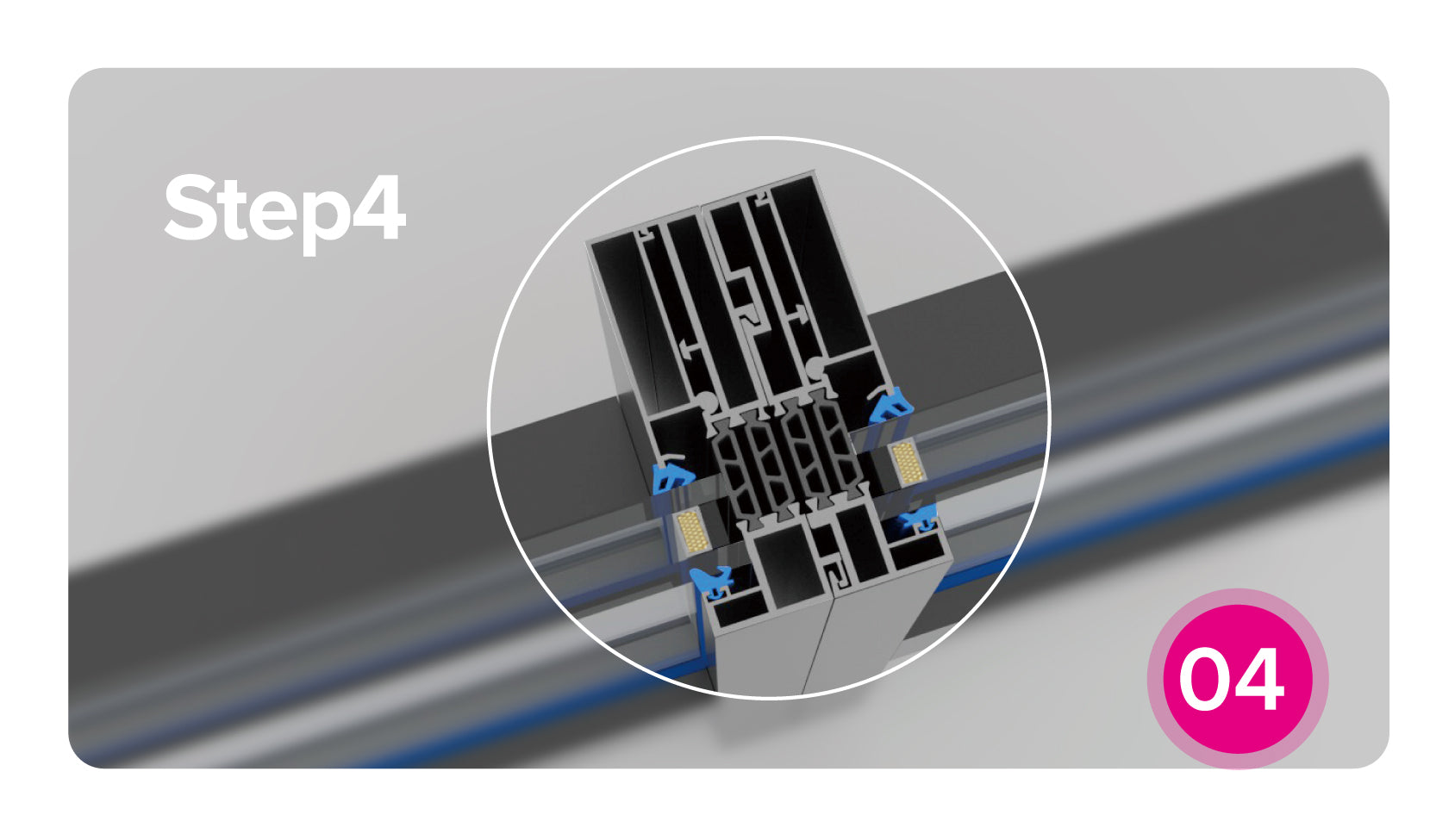

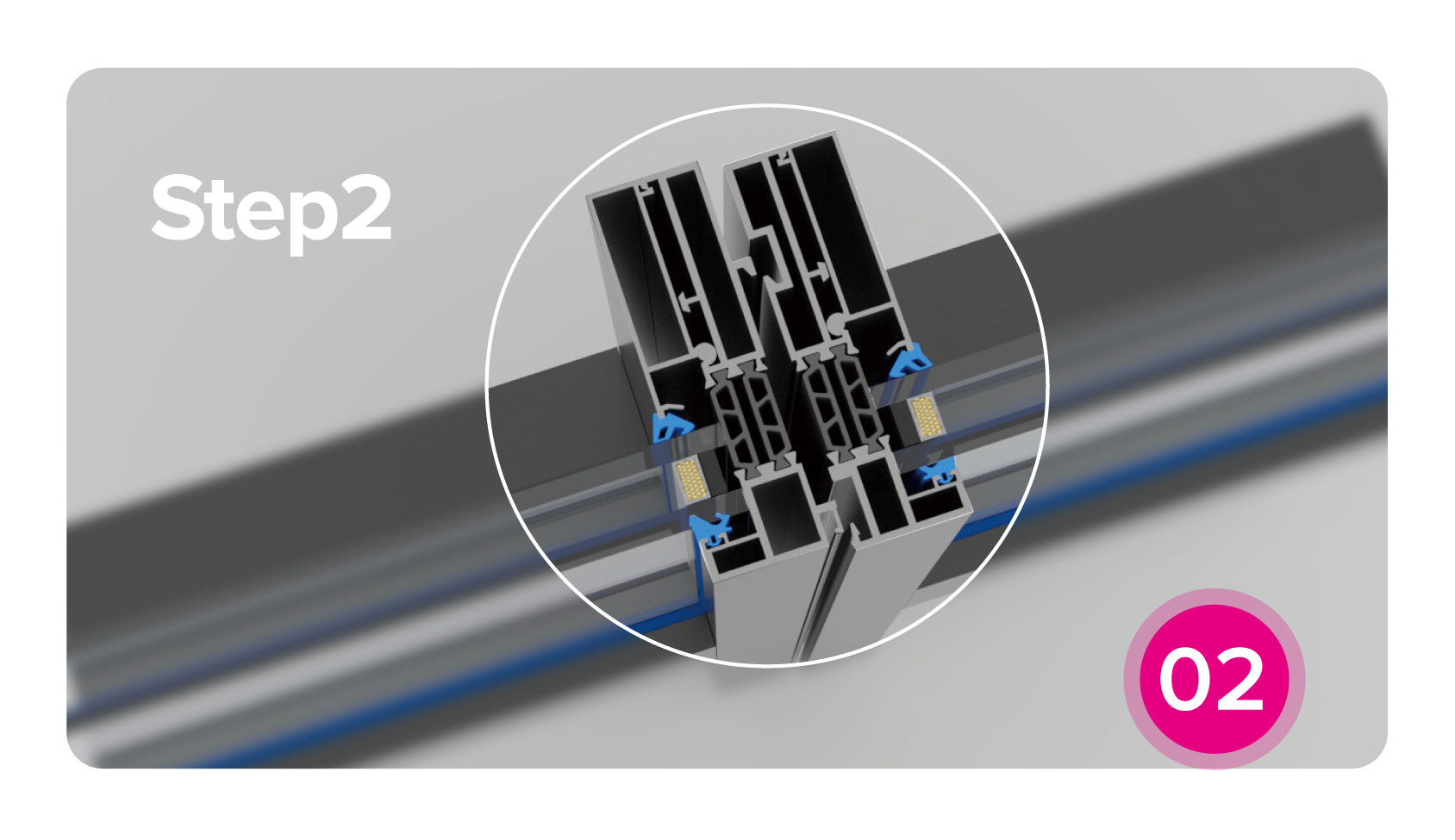

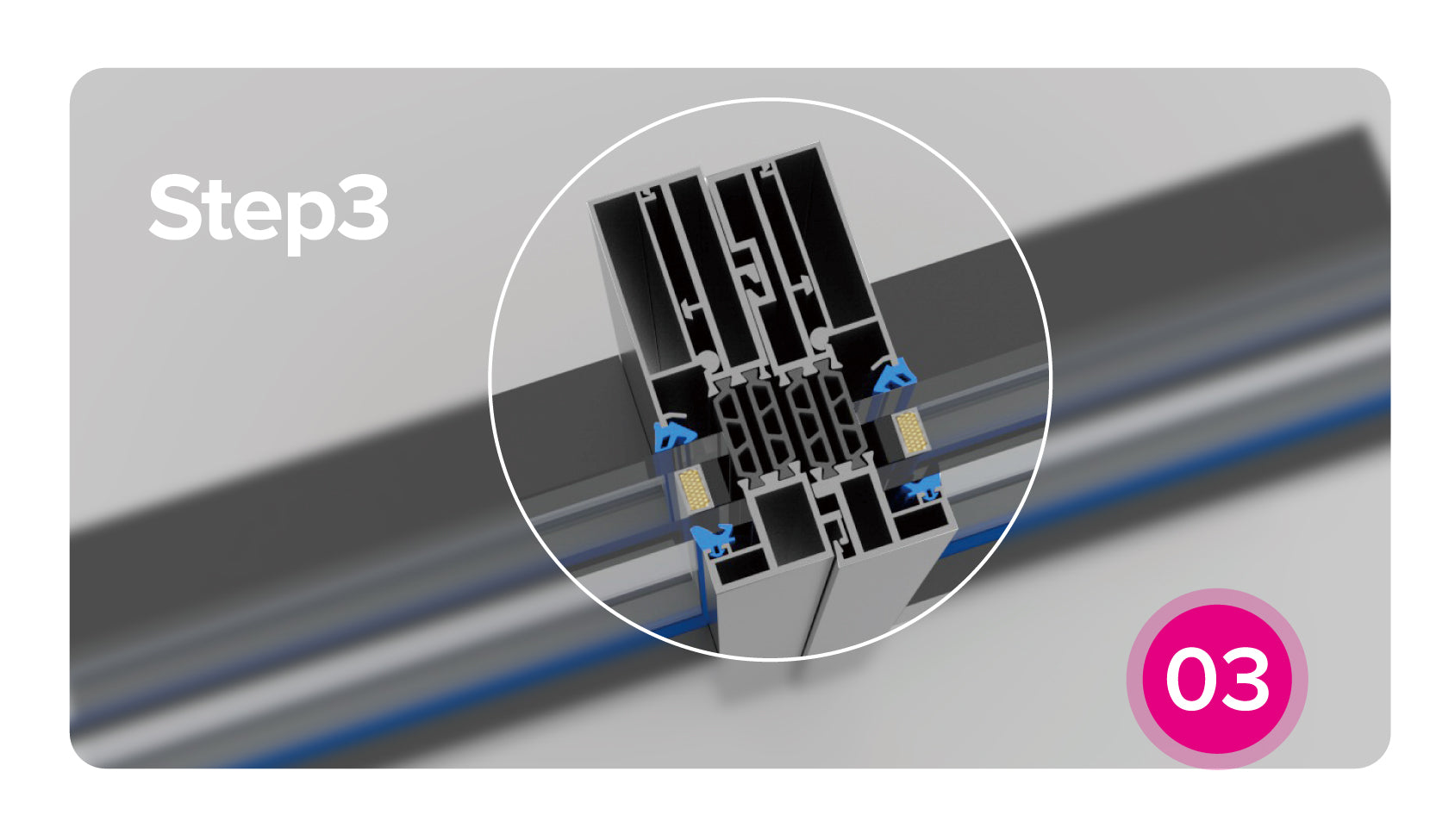

Connection process

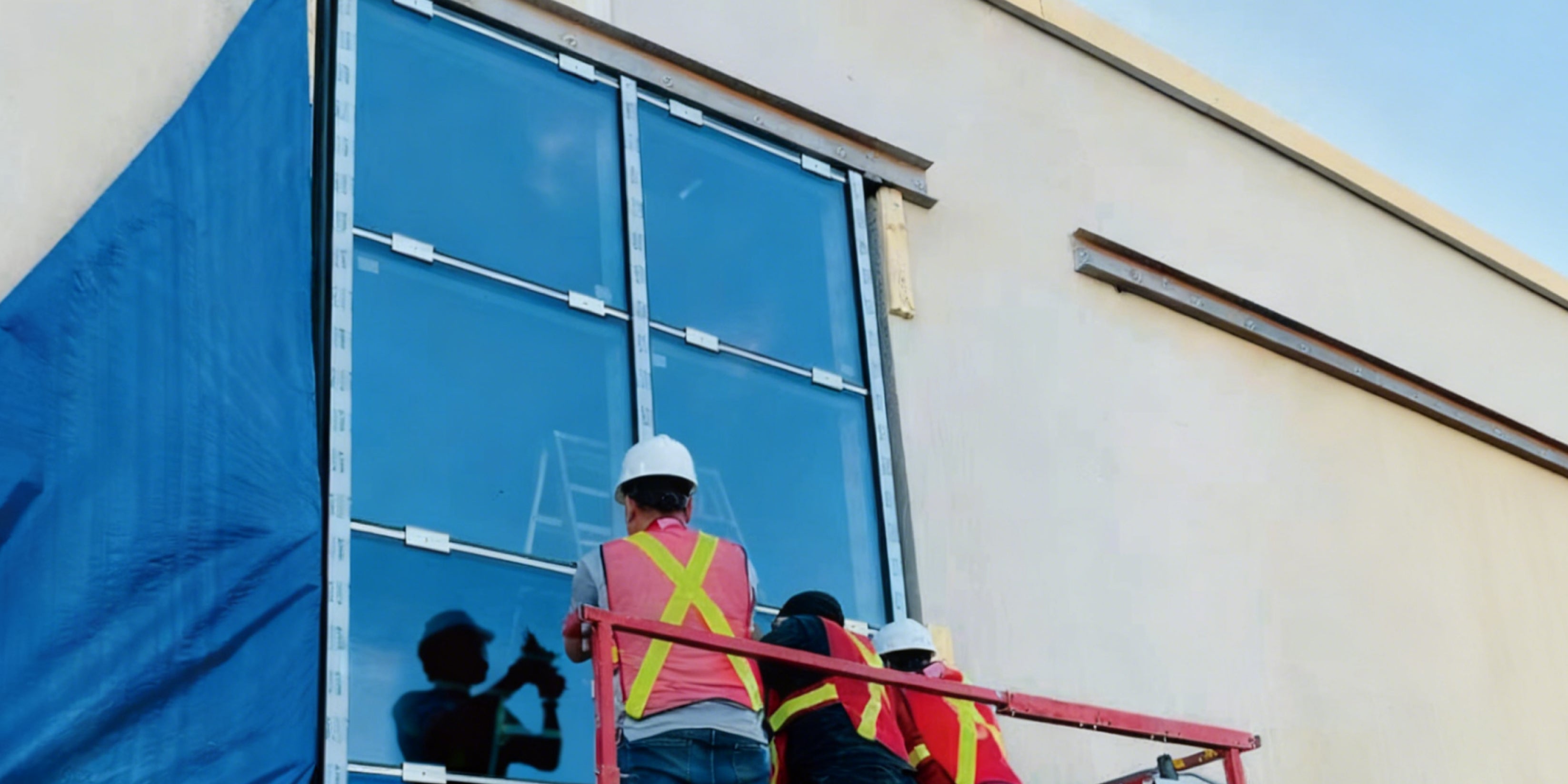

Installing the 110s storefront is extremely simple: just clip the units directly together, ensure the visible faces are flush, and then secure them with nails (as shown below).
Window wall system
Installing the 110s storefront is extremely simple: just clip the units directly together, ensure the visible faces are flush, and then secure them with nails (as shown below).

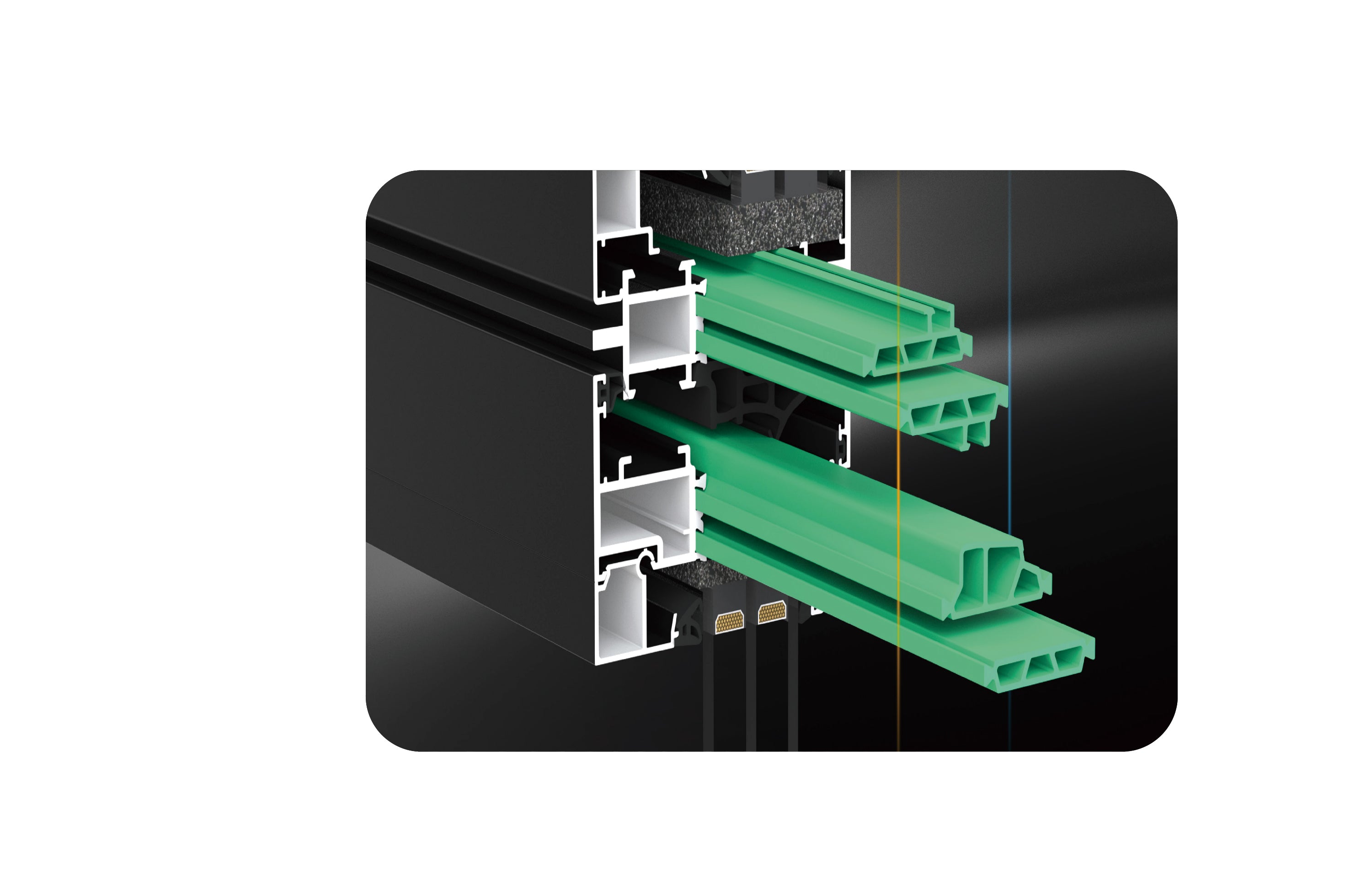

Thermal break aluminum system
Thermal break aluminum incorporates an insulation strip (nylon PA66 ) into the aluminum profile, separating the indoor and outdoor aluminum sections. This effectively blocks heat transfer pathways, creating a "thermal break," thereby significantly enhancing the thermal insulation performance of windows and doors.
Strength
Outstanding energy efficiency reduced energy consumption
The thermal break effectively blocks heat transfer, providing insulation in summer and warmth in winter, which can lower air conditioning and heating energy usage by approximately 30%-50%.
Excellent sound insulation performance
multi-layer sealing design, when combined with double-glazed or laminated glass, can reduce noise by 30-40 decibels, making it suitable for noisy environments such as streetside locations or areas near airports.
LUVINDOW

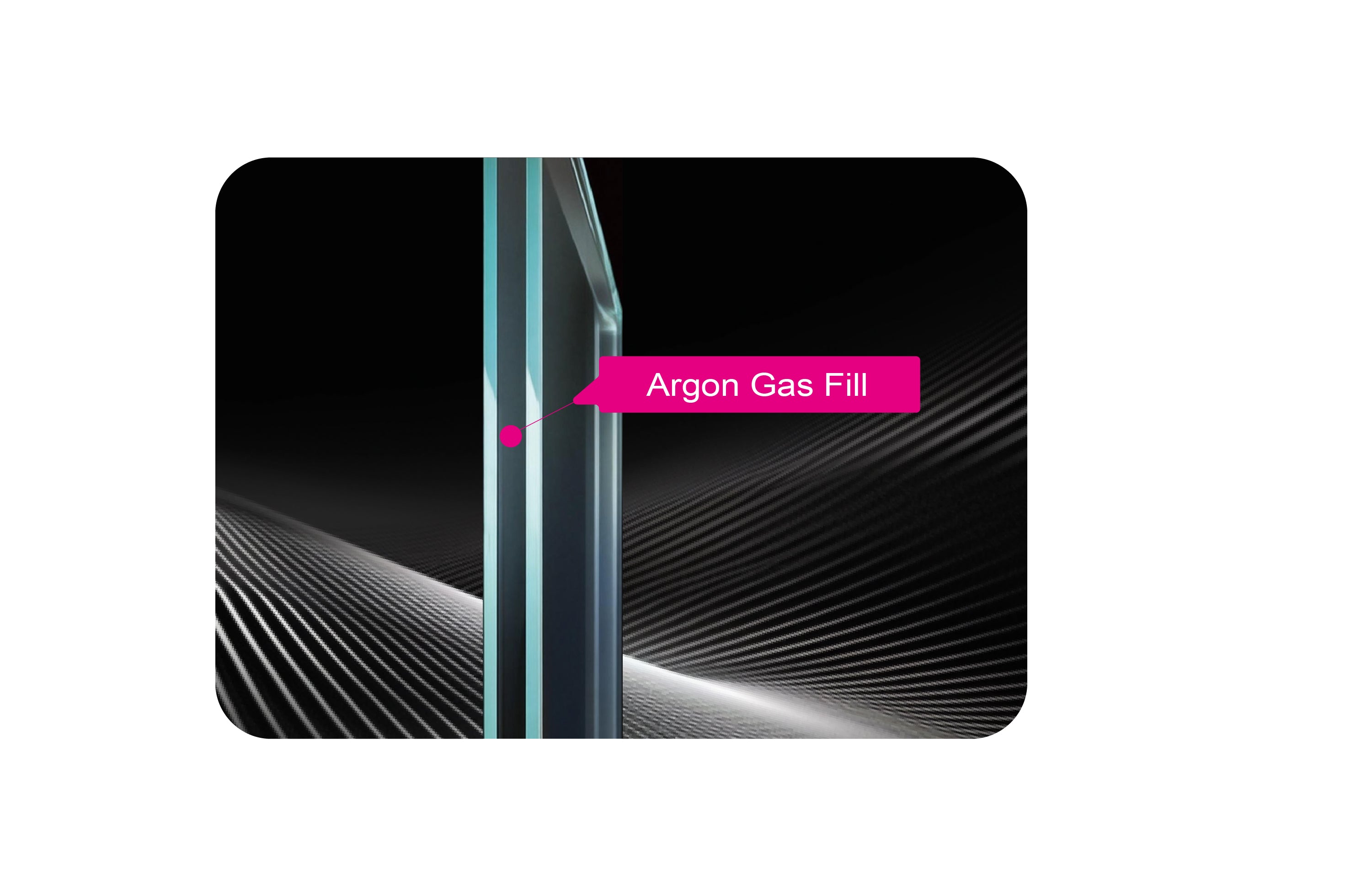

Ultra-clear glass
Lets light be authentically light.
• Low-E silver coating
Low-E (low emissivity) glass features a thin metallic oxide coating that reflects heat (infrared light) while allowing visible light to pass through, enhancing indoor comfort and reducing heating/cooling energy costs.
• +Warm Edge
Technoform Bautec warm edge spacer technology minimizes thermal bridges and brings a higher thermal insulation effect.

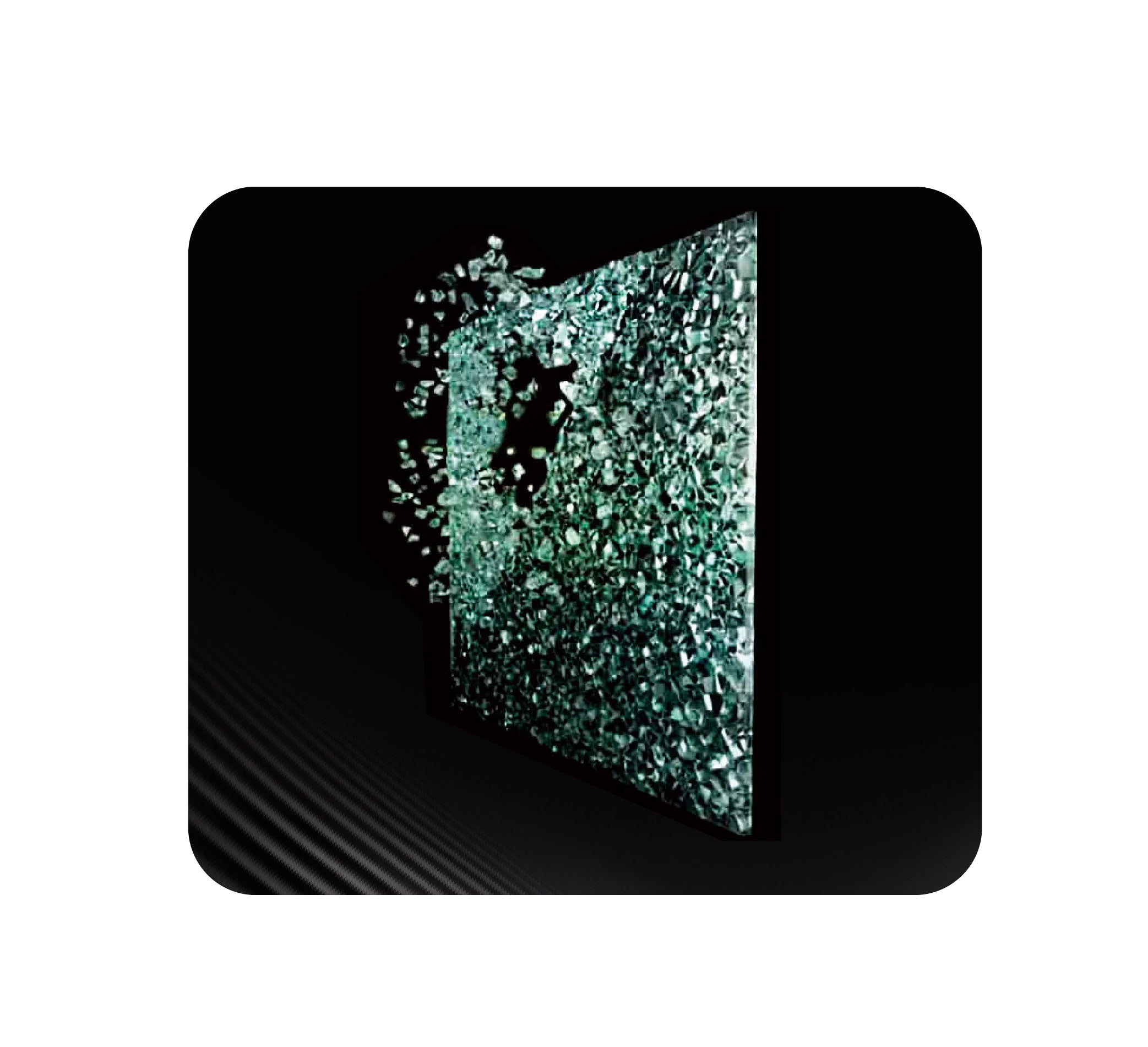

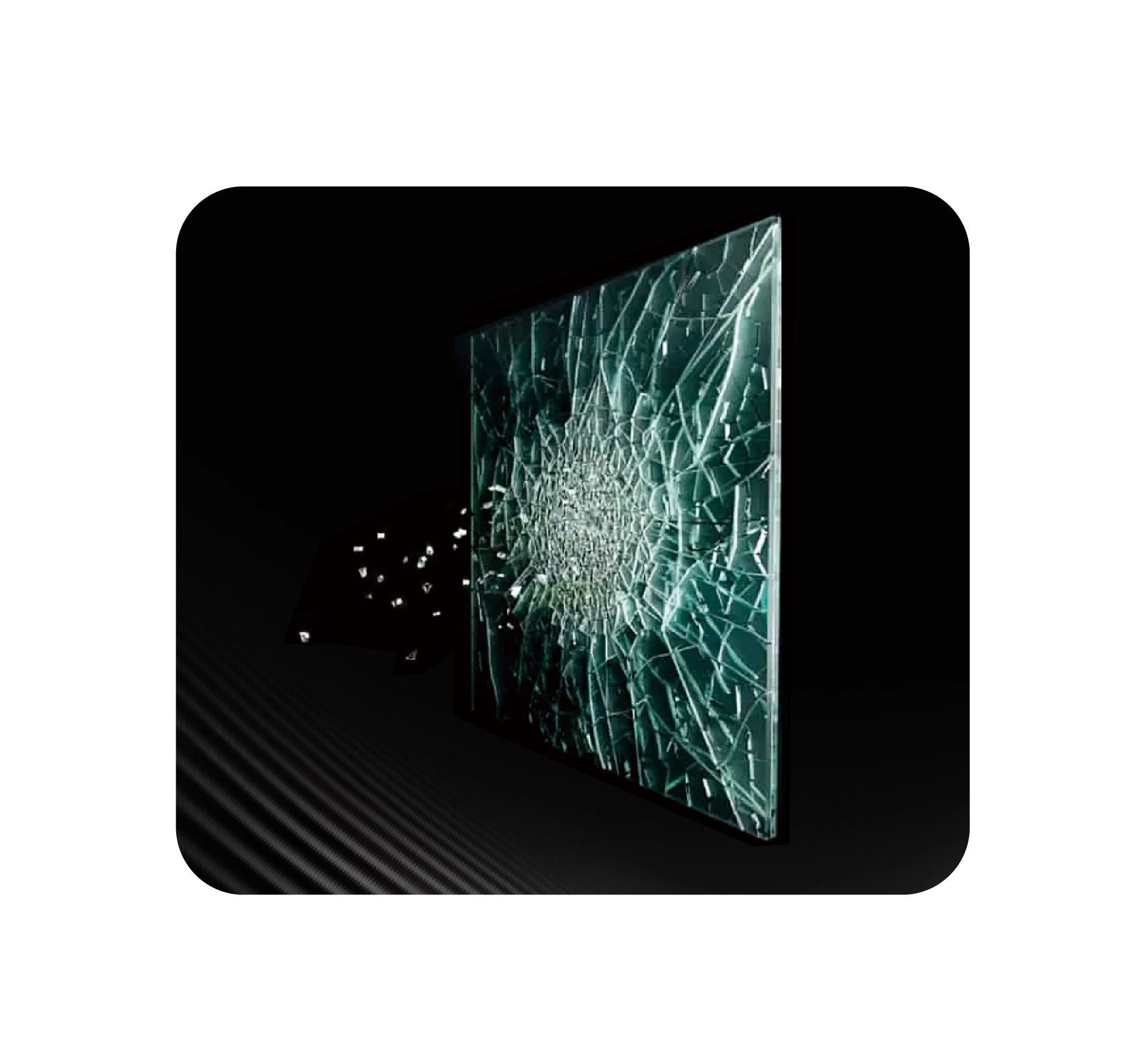

Tempered
Tempered glass is heat-treated to be 4–5 times stronger than regular glass and shatters into small, safe fragments upon breakage, making it ideal for safety-critical applications like doors, showers, and large windows.
Laminated
Laminated glass layers glass with a PVB interlayer to hold shards together upon impact, while also providing sound insulation and UV blocking—ideal for safety-conscious, noise-sensitive, and UV-exposed applications like storefronts and skylights.

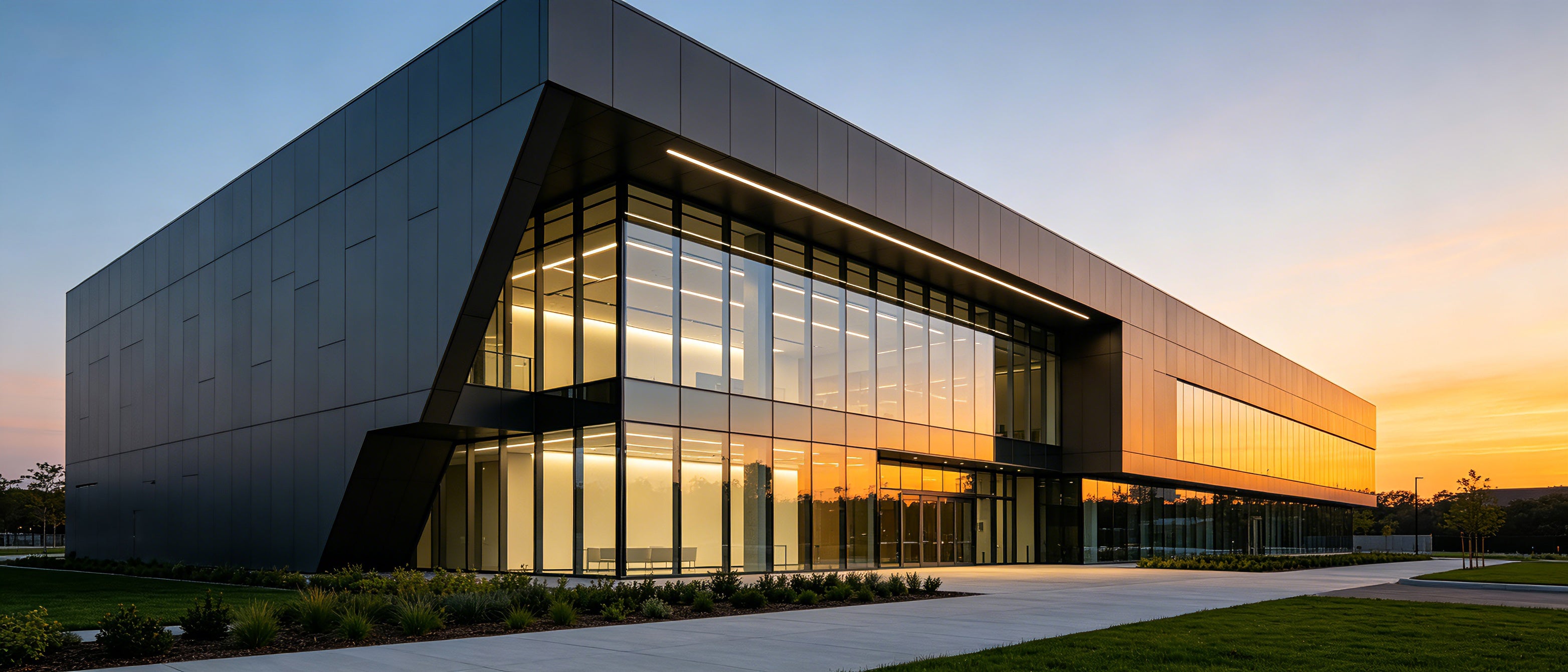

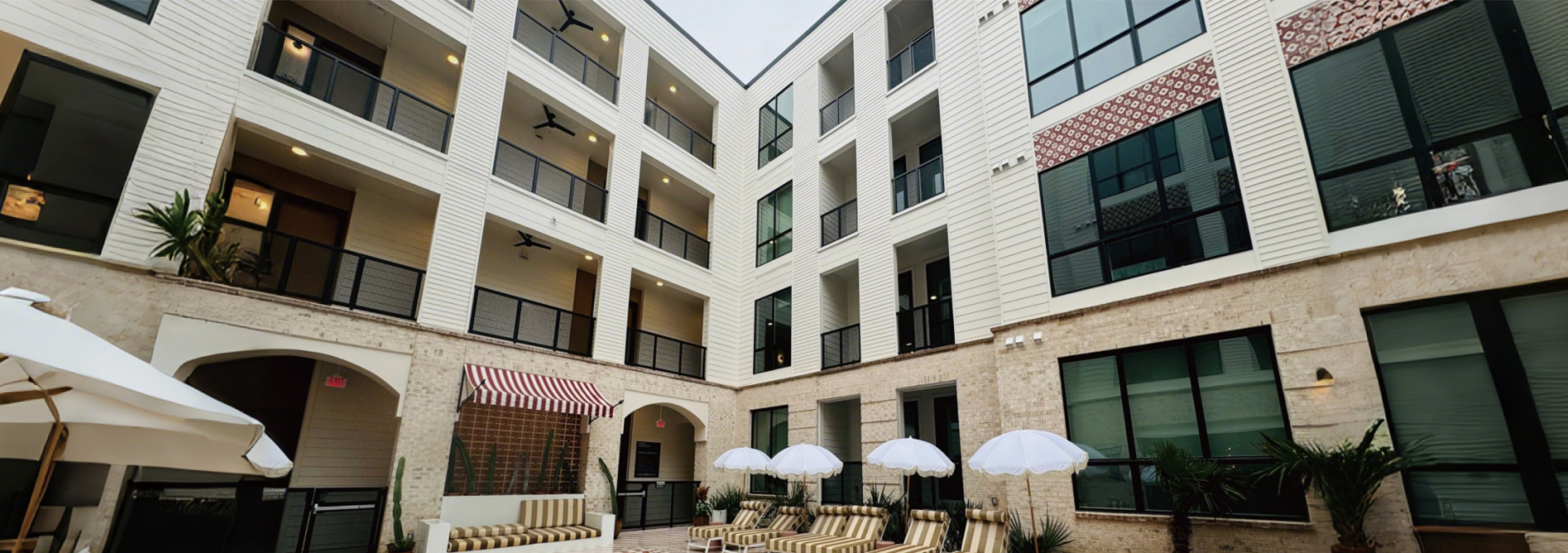

Project showcase
Every project represents the realization of a vision, the fulfillment of trust, and a vivid story of how space is redefined. Here, you witness not only the application of products but also the complete journey of how Luvindow collaborates with architects, developers, and owners to transform complex challenges into outstanding achievements.
